Question: Task 1 A connecting plate linking structural members in a transfer mechanism is acted upon by four non - concurrent coplanar forces as shown in

Task 1

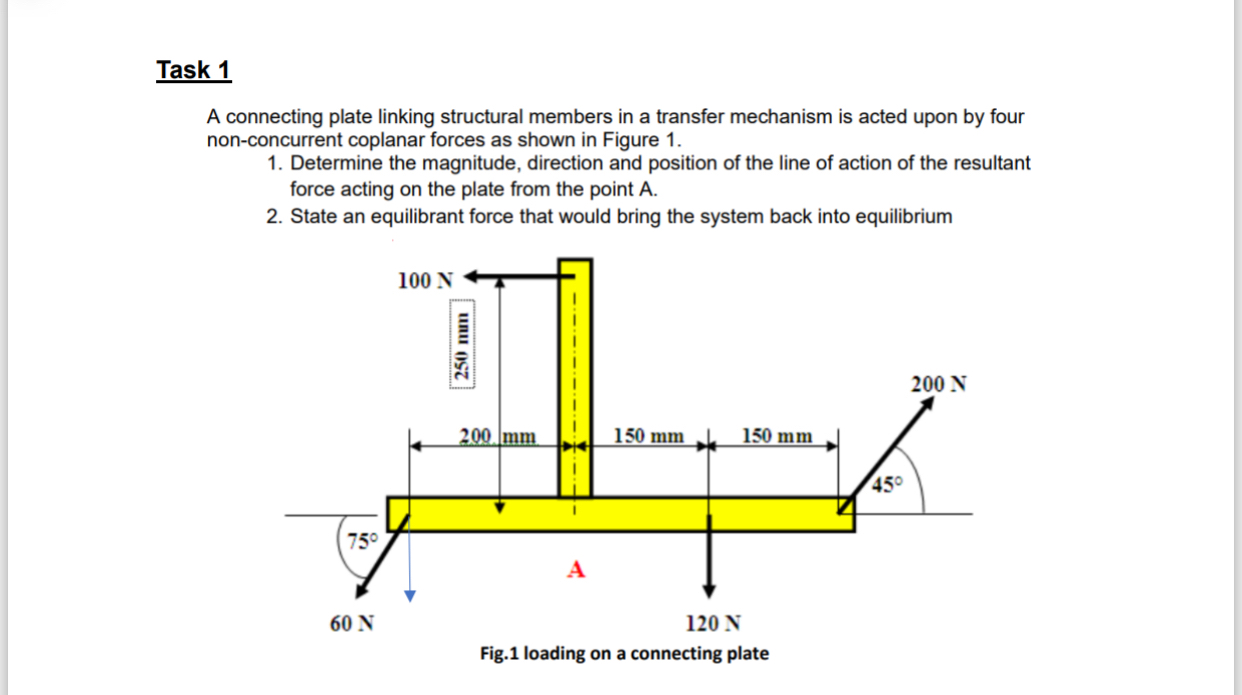

A connecting plate linking structural members in a transfer mechanism is acted upon by four non-concurrent coplanar forces as shown in Figure 1.
1. Determine the magnitude, direction and position of the line of action of the resultant force acting on the plate from the point A.
2. State an equilibrant force that would bring the system back into equilibrium
Task 1 A connecting plate linking structural

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
