Question: Task 1 : Reading Data Flow Diagrams Refer to figure 1 below which shows a draft of a Diagram 0 DFD for an Order Processing

Task 1: Reading Data Flow Diagrams

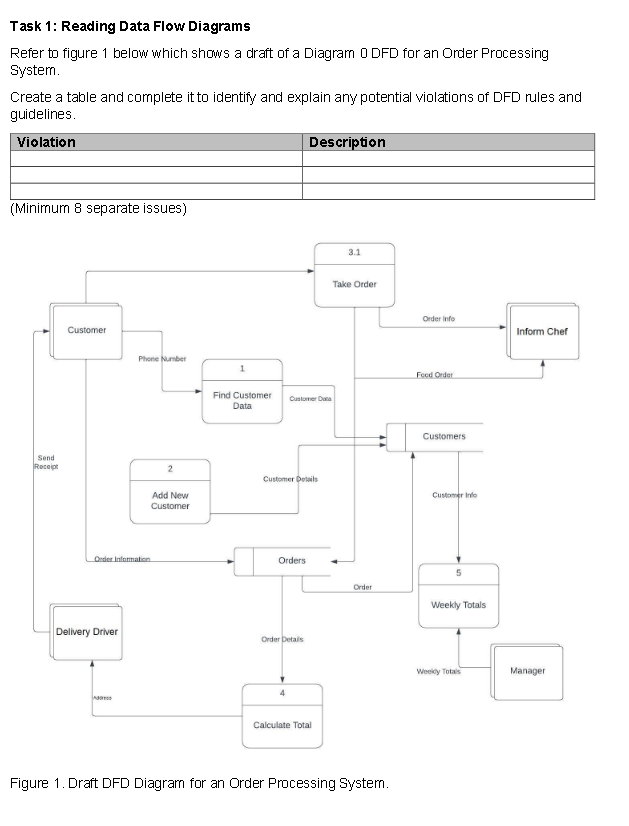

Refer to figure 1 below which shows a draft of a Diagram 0DFD for an Order Processing System.
Create a table and complete it to identify and explain any potential violations of DFD rules and guidelines.
\begin{tabular}{|l|l|}
\hline Violation & Description \\
\hline & \\
\hline & \\
\hline & \\
\hline
\end{tabular}
(Minimum 8 separate issues)
Task 1 : Reading Data Flow Diagrams Refer to

Step by Step Solution

There are 3 Steps involved in it
