Task 1: Use Visual Paradigm to create an activity diagram for each of the three use cases below.

Task 2: Use PlantUML to create a system sequence diagram (SSD) for each of the three use cases below.

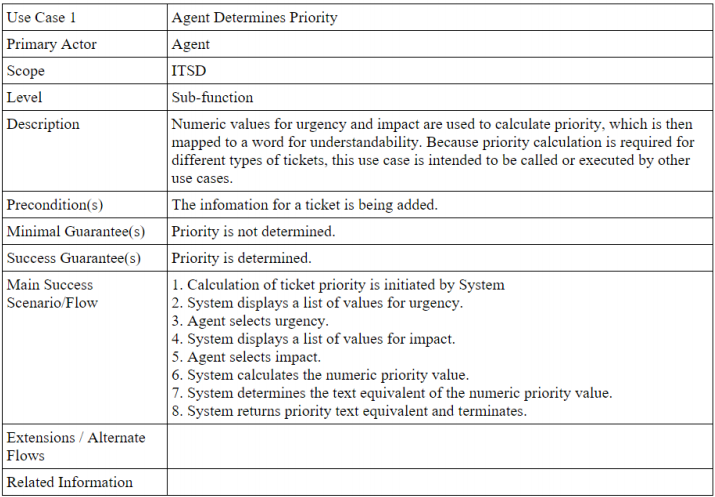

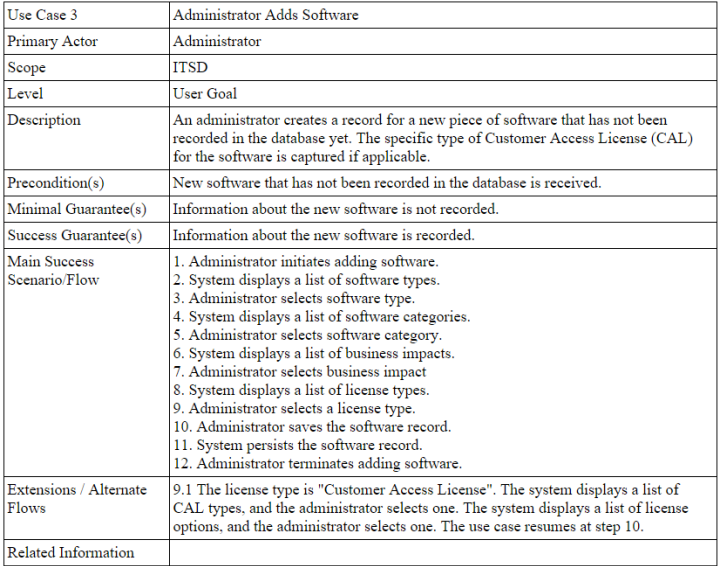

Use Case 1 Agent Determines Priority Primary Actor Agent ITSD Scope Sub-function Level Description Numeric values for urgency and impact are used to calculate priority, which is then mapped to a word for understandability. Because priority calculation is required for different types of tickets, this use case is intended to be called or executed by other use cases. The infomation for a ticket is being added. Precondition(s) Minimal Guarantee(s) Priority is not determined. Success Guarantee(s) Priority is determined. Main Success l. Calculation of ticket priority is initiated by System Scenario/Flow 2. System displays a list of values for urgency. 3. Agent selects urgency. 4. System displays a list of values for impact 5. Agent selects impact. 6. System calculates the numeric priority value. 7. System determines the text equivalent of the numeric priority value. 8. System returns priority text equivalent and terminates. Extensions Alternate Flows Related Information
