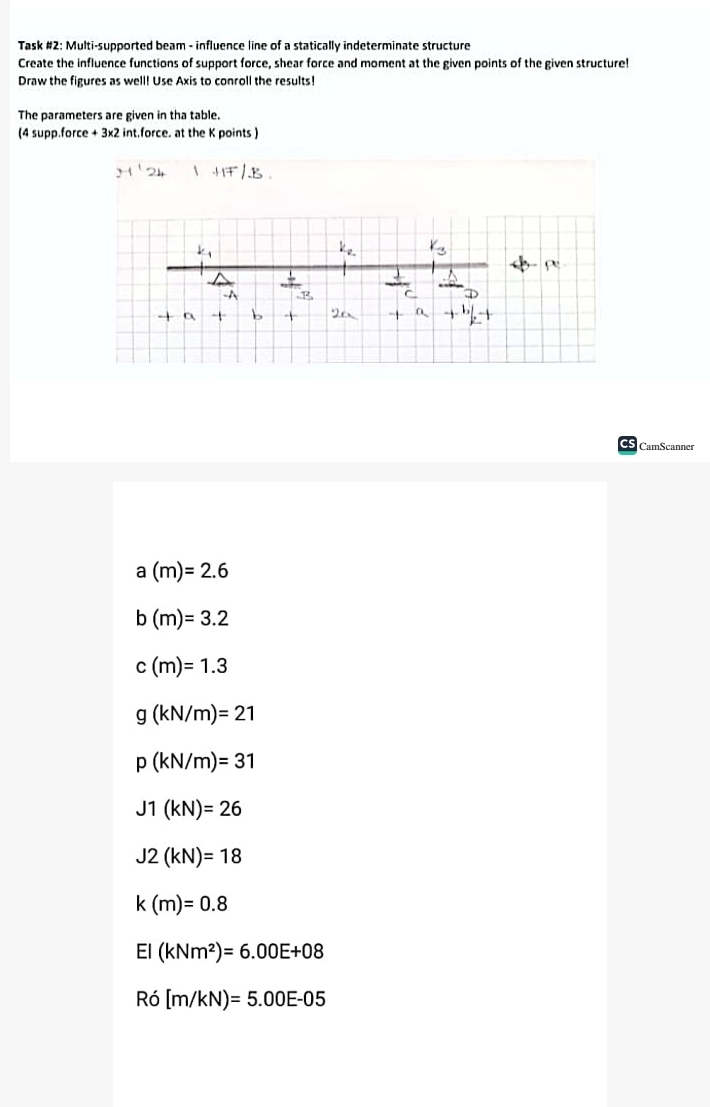

Task #$2$: Multi$-$supported beam $-$ influence line of a statically indeterminate structure

Create the influence functions of support force, shear force and moment at the given points of the given structure!

Draw the figures as welll Use Axis to conroll the results!

The parameters are given in tha table.

$(4$ supp.force $+32$ int.force. at the $K$ points$)$

M$131$ H $\frac{?}{k}$

CS CamScanner

$a(m)=2\mathrm{.}6$

$b(m)=3\mathrm{.}2$

$c(m)=1\mathrm{.}3$

$g(k\frac{N}{m})=21$

$p(k\frac{N}{m})=31$

$J1(kN)=26$

$J2(kN)=18$

$k(m)=0\mathrm{.}8$

$El(kN{m}^2)=6\mathrm{.}00E+08$

R$[\frac{m}{k}N)=5\mathrm{.}00E-05$
