Question: Task 2 : Simplify the following Boolean expression using K - Map F ( A , B , C ) = ( A + C

Task 2: Simplify the following Boolean expression using K-Map
F(A,B,C)=(A+C')+C(C.A'+(B.A)+C)
A

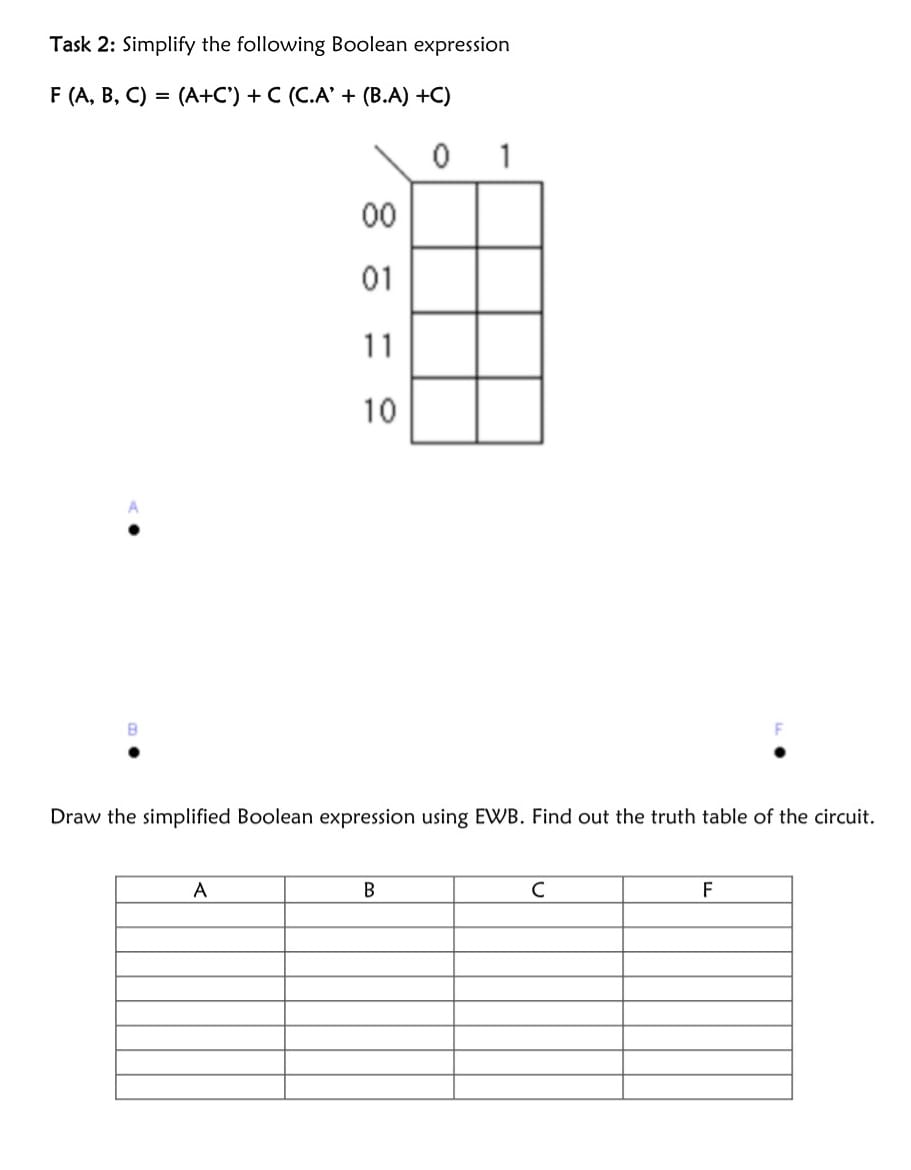

Draw the simplified Boolean expression using EWB. Find out the truth table of the circuit.
Task 2: Simplify the following Boolean expression using K-Map F(A,B,C)=(A+C')+C(C.A'+(B.A)+C) A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
