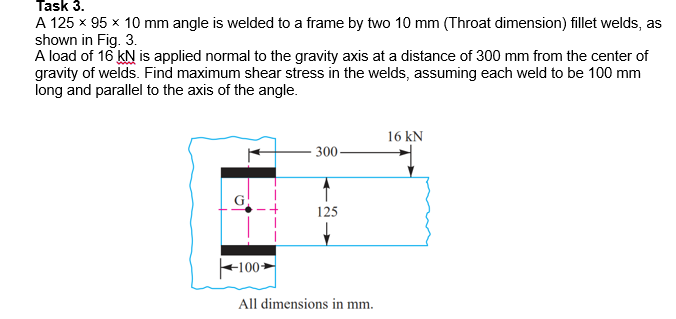

Task $3.$

A $\backslash (125\backslash$times $95\backslash$times $10\backslash$mathrm$\{$~mm$\}\backslash )$ angle is welded to a frame by two $10$ mm $($Throat dimension$)$ fillet welds, as shown in Fig. $3.$

A load of $16$ kN is applied normal to the gravity axis at a distance of $300$ mm from the center of gravity of welds. Find maximum shear stress in the welds, assuming each weld to be $100$ mm long and parallel to the axis of the angle.
