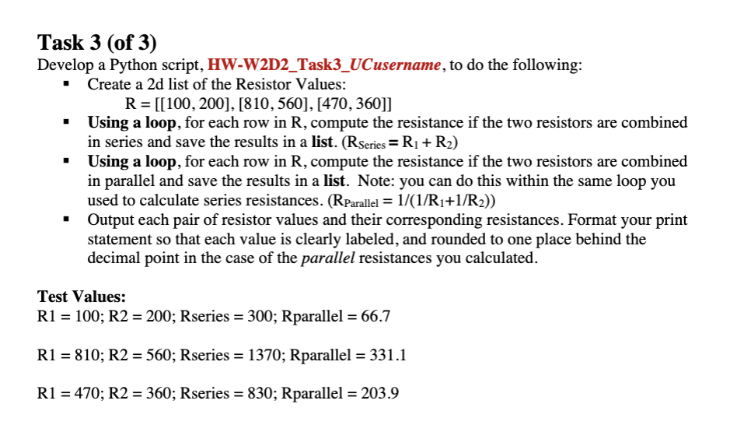

Task $3($of $3)$

Develop a Python script, HW$-$W$2$D$2\_$Task$3\_$UCusername, to do the following:

Create a $2$d list of the Resistor Values:

$R=\left[\begin{array}{cc}100& 200\\ 810& 560\\ 470& 360\end{array}\right]$

Using a loop, for each row in $R,$ compute the resistance if the two resistors are combined

in series and save the results in a list. $(R_{\text{S}\text{e}\text{r}\text{i}\text{e}\text{s}}=R_1+R_2)$

Using a loop, for each row in $R,$ compute the resistance if the two resistors are combined

in parallel and save the results in a list. Note: you can do this within the same loop you

used to calculate series resistances. $(R_{\text{P}\text{a}\text{r}\text{a}\text{l}\text{l}\text{e}\text{l}}=\frac{1}{\frac{1}{R_1}+\frac{1}{R_2}})$

Output each pair of resistor values and their corresponding resistances. Format your print

statement so that each value is clearly labeled, and rounded to one place behind the

decimal point in the case of the parallel resistances you calculated.

Test Values:

$R1=100$;$R2=200$; Rseries $=300$; Rparallel $=66\mathrm{.}7$

$R1=810$;$R2=560$; Rseries $=1370$; Rparallel $=331\mathrm{.}1$

$R1=470$;$R2=360$; Rseries $=830$; Rparallel $=203\mathrm{.}9$
