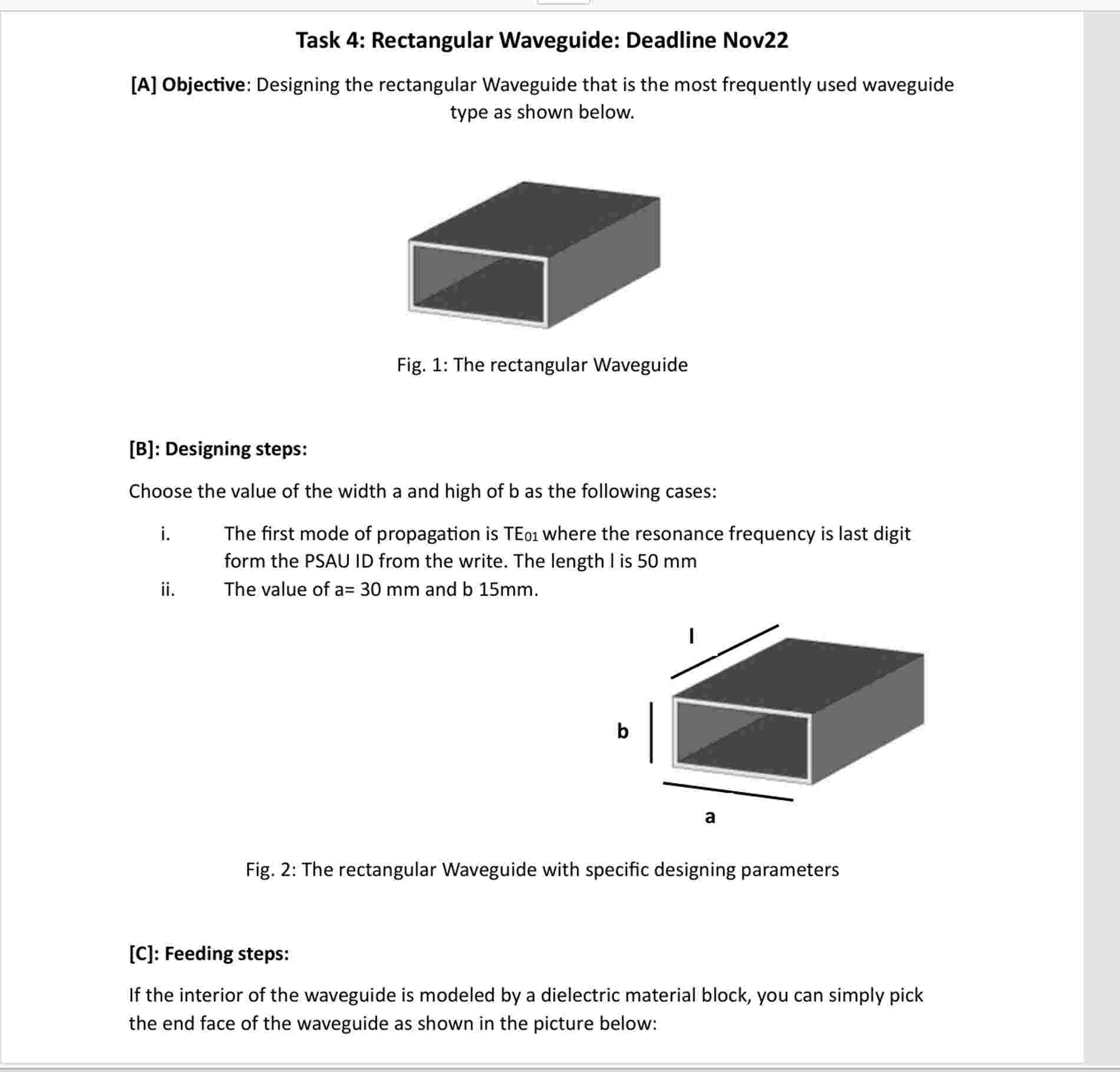

Task $4$: Rectangular Waveguide: Deadline Nov$22$

$[$A$]$ Objective: Designing the rectangular Waveguide that is the most frequently used waveguide type as shown below.

Fig. $1$: The rectangular Waveguide

$[$B$]$: Designing steps:

Choose the value of the width $\backslash ($ a $\backslash )$ and high of $\backslash ($ b $\backslash )$ as the following cases:

i$.$ The first mode of propagation is $\backslash (\backslash$mathrm$\{$TE$\}\_\{01\}\backslash )$ where the resonance frequency is last digit form the PSAU ID from the write. The length I is $50$ mm

ii$.$ The value of $\backslash ($ a$=30\backslash$mathrm$\{$~mm$\}\backslash )$ and $\backslash ($ b $15\backslash$mathrm$\{$~mm$\}\backslash ).$

Fig. $2$: The rectangular Waveguide with specific designing parameters

$[$C$]$: Feeding steps:

If the interior of the waveguide is modeled by a dielectric material block, you can simply pick the end face of the waveguide as shown in the picture below:
