Question: Task 5 : The rectangular plate is deformed into the shape of a parallelogram shown by the dashed line. Take a = 3 7 0

Task 5:

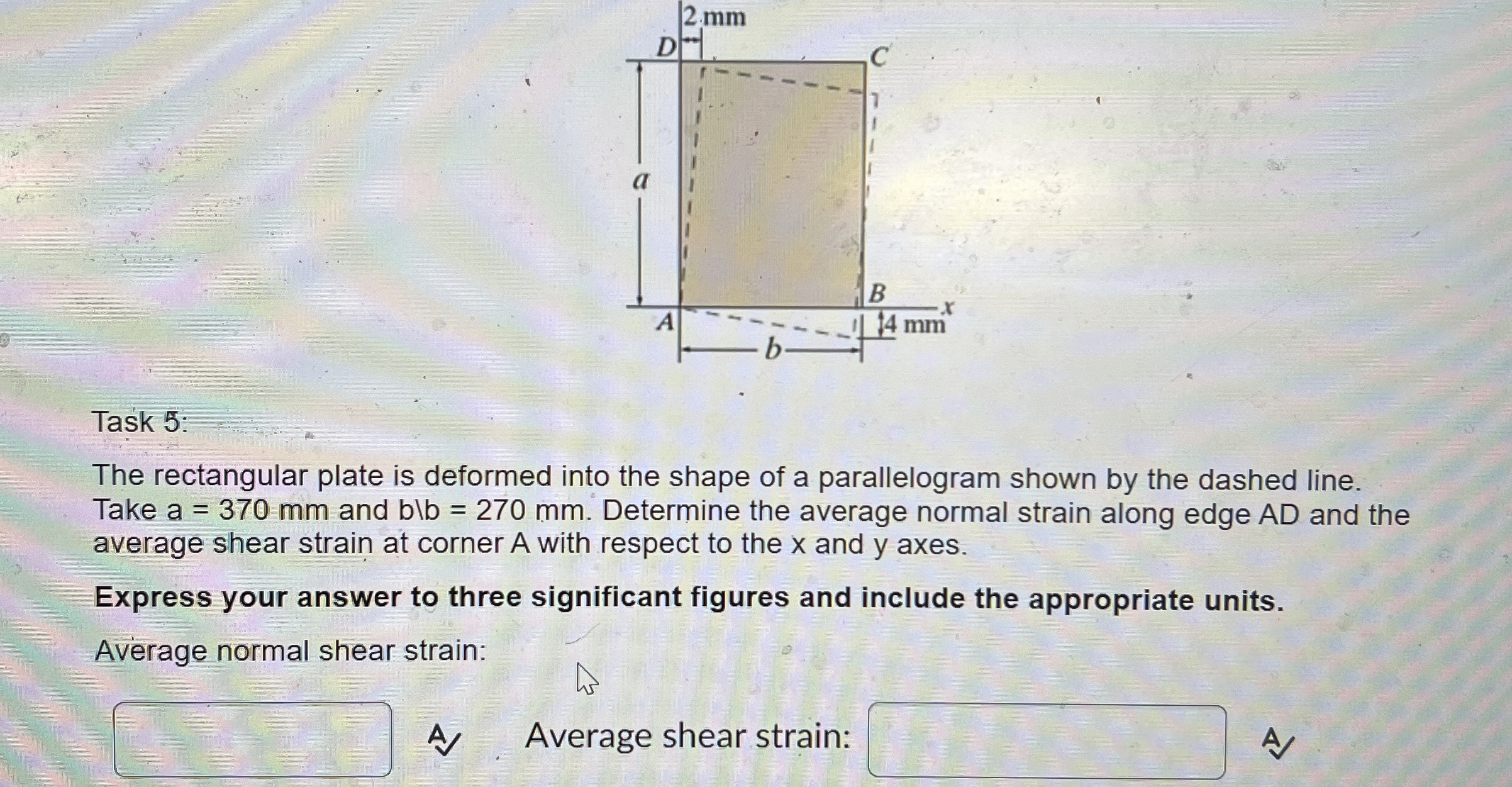

The rectangular plate is deformed into the shape of a parallelogram shown by the dashed line. Take a=370mm and bb=270mm. Determine the average normal strain along edge AD and the average shear strain at corner A with respect to the x and y axes.
Express your answer to three significant figures and include the appropriate units.
Average normal shear strain:
A Average shear strain:
Task 5 : The rectangular plate is deformed into

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
