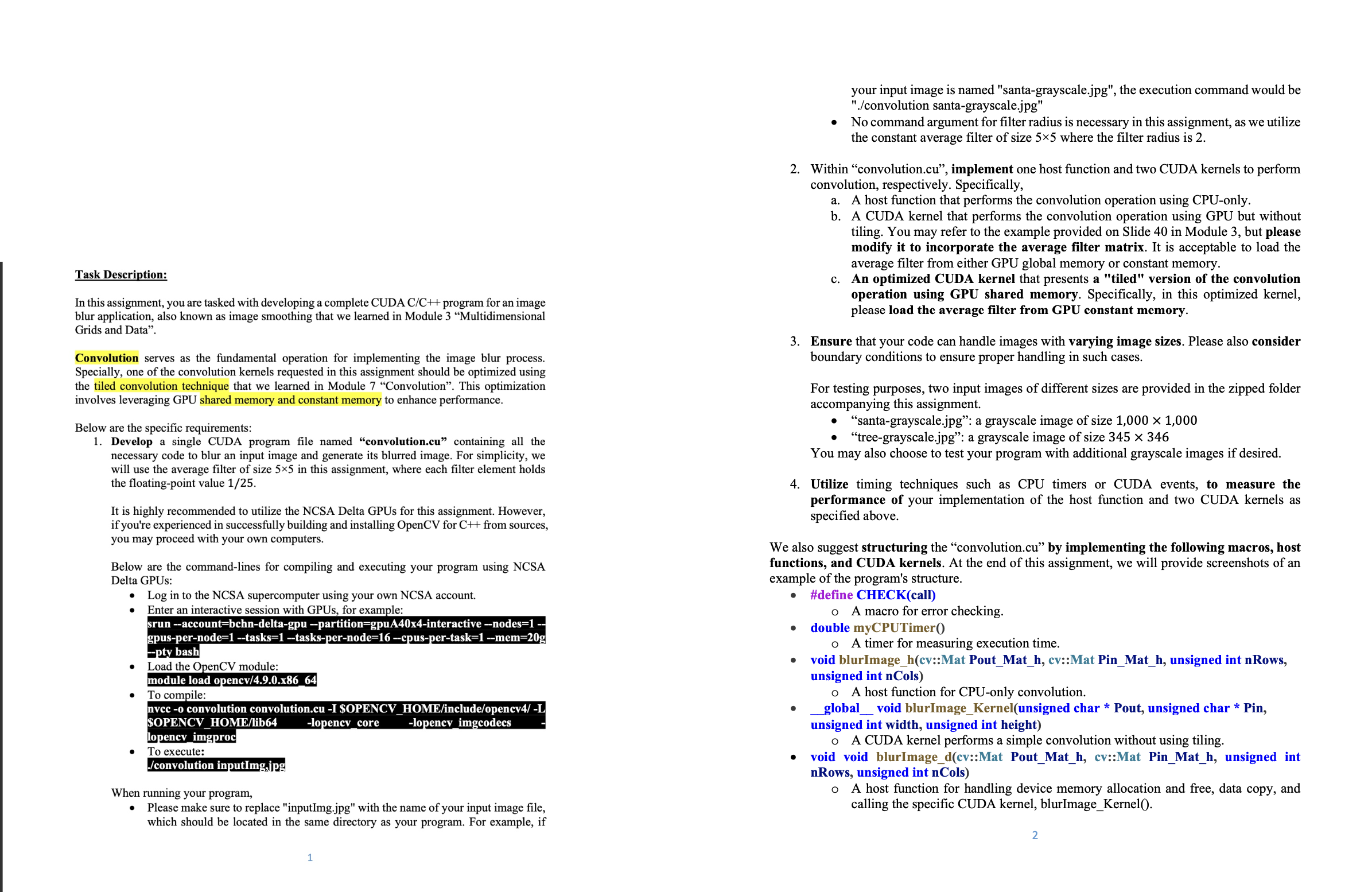

Task Description:

In this assignment, you are tasked with developing a complete CUDA $\frac{C}{C}++$ program for an image

blur application, also known as image smoothing that we learned in Module $3$ "Multidimensional

Grids and Data".

Convolution serves as the fundamental operation for implementing the image blur process.

Specially, one of the convolution kernels requested in this assignment should be optimized using

the tiled convolution technique that we learned in Module $7$ "Convolution". This optimization

involves leveraging GPU shared memory and constant memory to enhance performance.

Below are the specific requirements:

Develop a single CUDA program file named $"$

convolution.cu$"$ containing all the

necessary code to blur an input image and generate its blurred image. For simplicity, we

will use the average filter of size $55$ in this assignment, where each filter element holds

the floating$-$point value $\frac{1}{25}$

It is highly recommended to utilize the NCSA Delta GPUs for this assignment. However,

if you're experienced in successfully building and installing OpenCV for $C++$ from sources,

you may proceed with your own computers.

Below are the command$-$lines for compiling and executing your program using NCSA

Delta GPUs:

Log in to the NCSA supercomputer using your own NCSA account.

Enter an interactive session with GPUs, for example:

srun $--$account$=$bchn$-$delta$-$gpu $-$partition$=$gpuA$40$x$4-$interactive $-$nodes$=1-$

gpus$-$per$-$node $=1--$tasks$=1-$ tasks$-$per$-$node $=16-$ cpus$-$per$-$task $=1--$mem$=20g$

$-$pty bash

Load the OpenCV module:

module load opencv$/4\mathrm{.}9\mathrm{.}0.$x$8664$

To compile:

nvce $-$o convolution

convolution.cu $-$I SOPENCV$\_$HOME$/$include$/$opencv$4/-$L

SOPENCV$\_$HOME$/$lib$64-$lopencv core $-$lopencv imgcodecs

lopencv imgproc

To execute:

$/$convolution inputImgipg

When running your program,

Please make sure to replace "inputImg.jpg$"$ with the name of your input image file,

which should be located in the same directory as your program. For example, if

your input image is named "santa$-$grayscale.jpg$",$ the execution command would be

$"./$convolution santa$-$grayscale.jpg$"$

No command argument for filter radius is necessary in this assignment, as we utilize

the constant average filter of size $55$ where the filter radius is $2.$

Within $"$

convolution.cu$",$ implement one host function and two CUDA kernels to perform

convolution, respectively. Specifically,

a$.$ A host function that performs the convolution operation using CPU$-$only.

b$.$ A CUDA kernel that performs the convolution operation using GPU but without

tiling. You may refer to the example provided on Slide $40$ in Module $3,$ but please

modify it to incorporate the average filter matrix. It is acceptable to load the

average filter from either GPU global memory or constant memory.

c$.$ An optimized CUDA kernel that presents a "tiled" version of the convolution

operation using GPU shared memory. Specifically, in this optimized kernel,

please load the average filter from GPU constant memory.

Ensure that your code can handle images with varying image sizes. Please also consider

boundary conditions to ensure proper handling in such cases.

For testing purposes, two input images of different sizes are provided in the zipped folder

accompanying this assignment.

"santa$-$grayscale.jpg$"$: a grayscale image of size $1,0001,000$

"tree$-$grayscale.jpg$"$: a grayscale image of size $345346$

You may also choose to test your program with additional grayscale images if desired.

Utilize timing techniques such as CPU timers or CUDA events, to measure the

performance of your implementation of the host function and two CUDA kernels as

specified above.

We also suggest structuring the $"$

convolution.cu$"$ by implementing the following macros, host

functions, and CUDA kernels. At the end of this assignment, we will provide screenshots of an

example of the program's structure.

#define CHECK$($call$)$

$$ A macro for error checking.

double myCPUTimer$(0)$

A timer for measuring execution time.

void blurImage$\_$h$($cv::Mat Pout$\_$Mat$\_$h$,$ cv::Mat Pin$\_$Mat$\_$h$,$ unsigned int nRows,

unsigned int $n$ Cols$)$

$$ A host function for CPU$-$only convolution.

$\_$ void blurImage$\_$Kernel$($unsigned char $*$ Pout, unsigned char $*$ Pin,

unsigned int width, unsigned int height$)$

$$ A CUDA kernel performs a simple convolution without using tiling.

void void blurImage$\_$d$($cv::Mat Pout$\_$Mat$\_$h$,$ cv::Mat Pin$\_$Mat$\_$h$,$ unsigned int

nRows, unsigned int nCols$)$

A host function for handling device memory allocation and free, data copy, and

calling the specific CUDA kernel, blurImage$\_$Kernel$().$
