Task

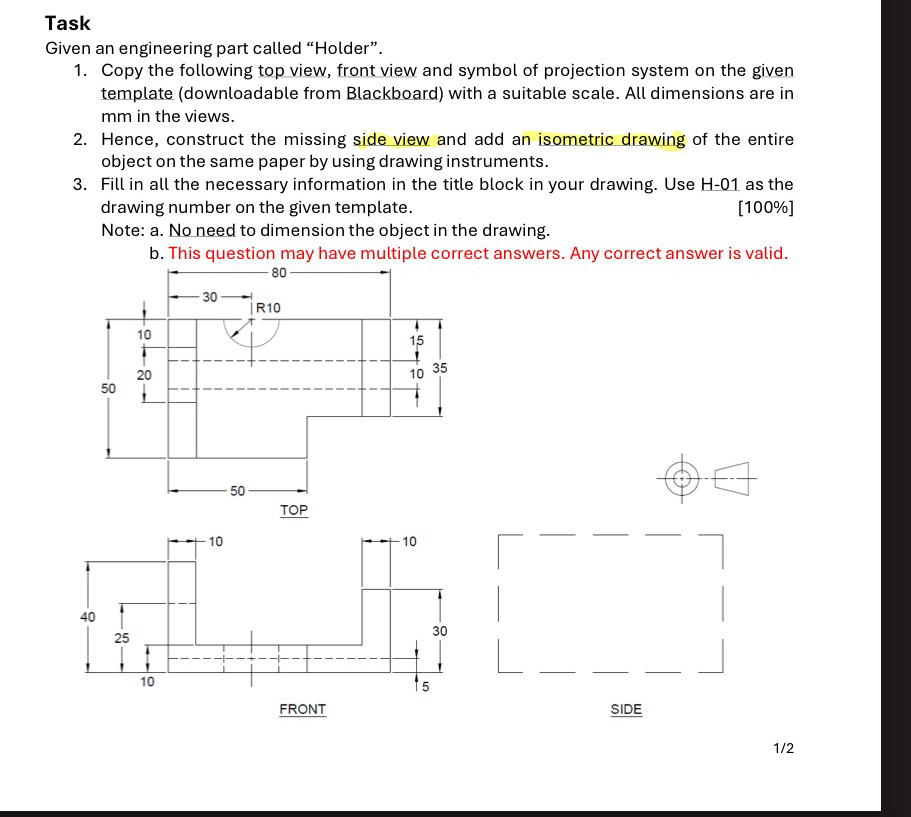

Given an engineering part called "Holder".

Copy the following top view, front view and symbol of projection system on the given

template $($downloadable from Blackboard$)$ with a suitable scale. All dimensions are in

mm in the views.

Hence, construct the missing side view and add an isometric drawing of the entire

object on the same paper by using drawing instruments.

Fill in all the necessary information in the title block in your drawing. Use $H-01$ as the

drawing number on the given template.

Note: a$.$ No need to dimension the object in the drawing.

b$.$ This question mav have multiple correct answers. Any correct answer is valid.
