Task:

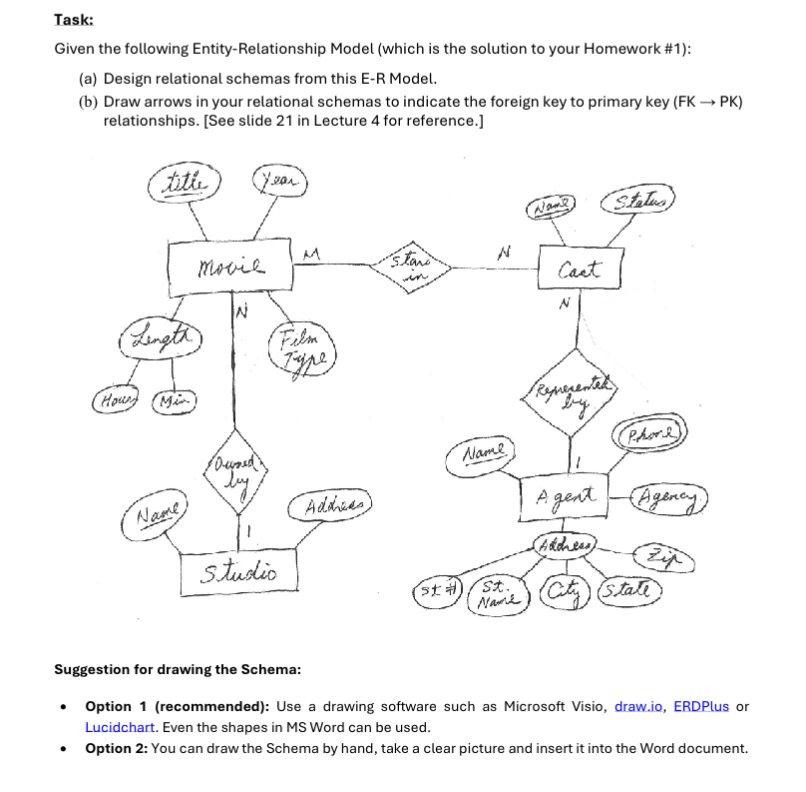

Given the following Entity$-$Relationship Model $($which is the solution to your Homework #$1)$:

$($a$)$ Design relational schemas from this E$-$R Model.

$($b$)$ Draw arrows in your relational schemas to indicate the foreign key to primary key $(FKPK)$

relationships. $[$See slide $21$ in Lecture $4$ for reference.$]$

Suggestion for drawing the Schema:

Option $1($recommended$)$: Use a drawing software such as Microsoft Visio,

draw.io$,$ ERDPlus or

Lucidchart. Even the shapes in MS Word can be used.

Option $2$: You can draw the Schema by hand, take a clear picture and insert it into the Word document.
