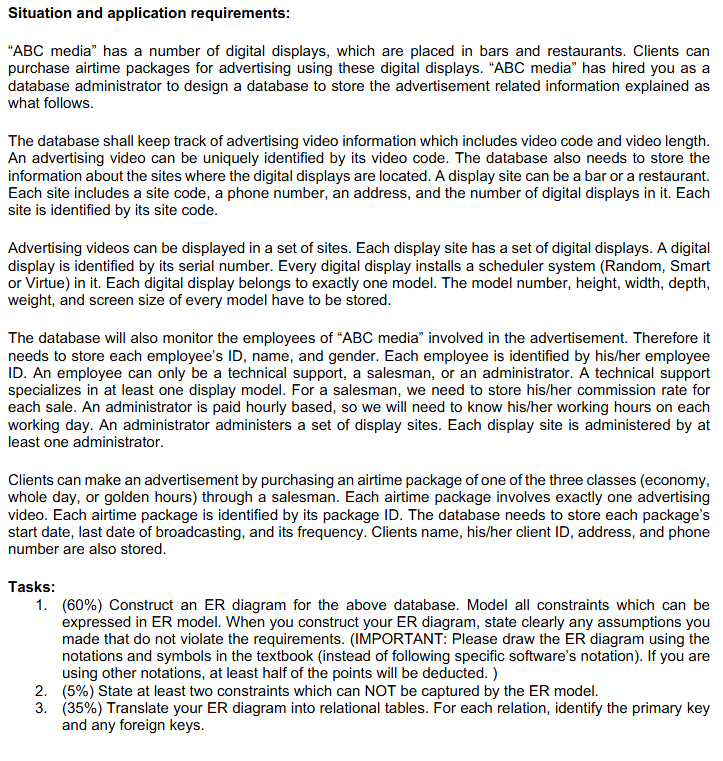

Tasks:

$1.(60\%)$ Construct an ER diagram for the above database. Model all constraints which can be expressed in ER model. When you construct your ER diagram, state clearly any assumptions you made that do not violate the requirements. $($IMPORTANT: Please draw the ER diagram using the notations and symbols in the textbook $($instead of following specific software$$s notation$).$ If you are using other notations, at least half of the points will be deducted. $)$

Rectangles represent entity sets

Diamonds represent relationship sets

Attributes listed inside entity rectangle

Underline indicates primary key attributes

Dashed lines link attributes of a relationship set to the relationship set

$2.(5\%)$ State at least two constraints which can NOT be captured by the ER model.

$3.(35\%)$ Translate your ER diagram into relational tables. For each relation, identify the primary key and any foreign keys.

$$ABC media$$ has decided to have the below relational schema for their database.

$1.$ Video $($videoCode: integer, videoLength: integer$)$

$2.$ Model $($modelNo: char$(10),$ width: numeric $(6,2),$ height: numeric $(6,2),$ weight: numeric $(6,2),$

depth: numeric $(6,2),$ screenSize: numeric $(6,2))$

$3.$ Site $($siteCode: integer, type: varchar $(16),$ address: varchar$(100),$ phone: varchar$(16))$

$4.$ DigitalDisplay $($serialNo: char$(10),$ schedulerSystem: char$(10),$ modelNo: char$(10))$

Foreign key: modelNo references Model $($modelNo$)$

$5.$ Client $($clientId: integer, name: varchar $(40),$ phone: varchar $(16),$ address: varchar $(100))$

$6.$ TechnicalSupport $($empId: integer, name: varchar $(40),$ gender: char $(1))$

$7.$ Administrator $($empId: integer, name: varchar $(40),$ gender: char $(1))$

$8.$ Salesman $($empId: integer, name: varchar $(40),$ gender: char $(1))$

$9.$ AirtimePackage $($packageId: integer, class: varchar $(16),$ startDate: date, lastDate: date,

frequency: integer, videoCode: integer$)$

$10.$ AdmWorkHours $($empId: integer, day: date, hours: numeric $(4,2))$

Foreign key: empId references Administrator $($empId$)$

$11.$ Broadcasts $($videoCode: integer, siteCode: integer$)$

Foreign key: videoCode references Video $($videoCode$)$

Foreign key: siteCode references Site $($siteCode$)$

$12.$ Administers $($empId: integer, siteCode: integer$)$

Foreign key: empId references Administrator $($empId$)$

Foreign key: siteCode references Site $($siteCode$)$

$13.$ Specializes $($empId: integer, modelNo: char$(10))$

Foreign key: empId references TechnicalSupport $($empId$)$

Foreign key: modelNo references Model $($modelNo$)$

$14.$ Purchases $($clientId: integer, empId: integer, packageId: integer, commissionRate: numeric $(4,2))$

Foreign key: clientId references Client $($clientId$)$

Foreign key: empId references Salesman $($empId$)$

Foreign key: packageId references AirtimePackage $($packageId$)$

$15.$ Locates $($serialNo: char $(10),$ siteCode: integer$)$

Foreign key: serialNo references DigitalDisplay $($serialNo$)$

Foreign key: siteCode references Site $($siteCode$)$

Can you please make the diagram as listed.
