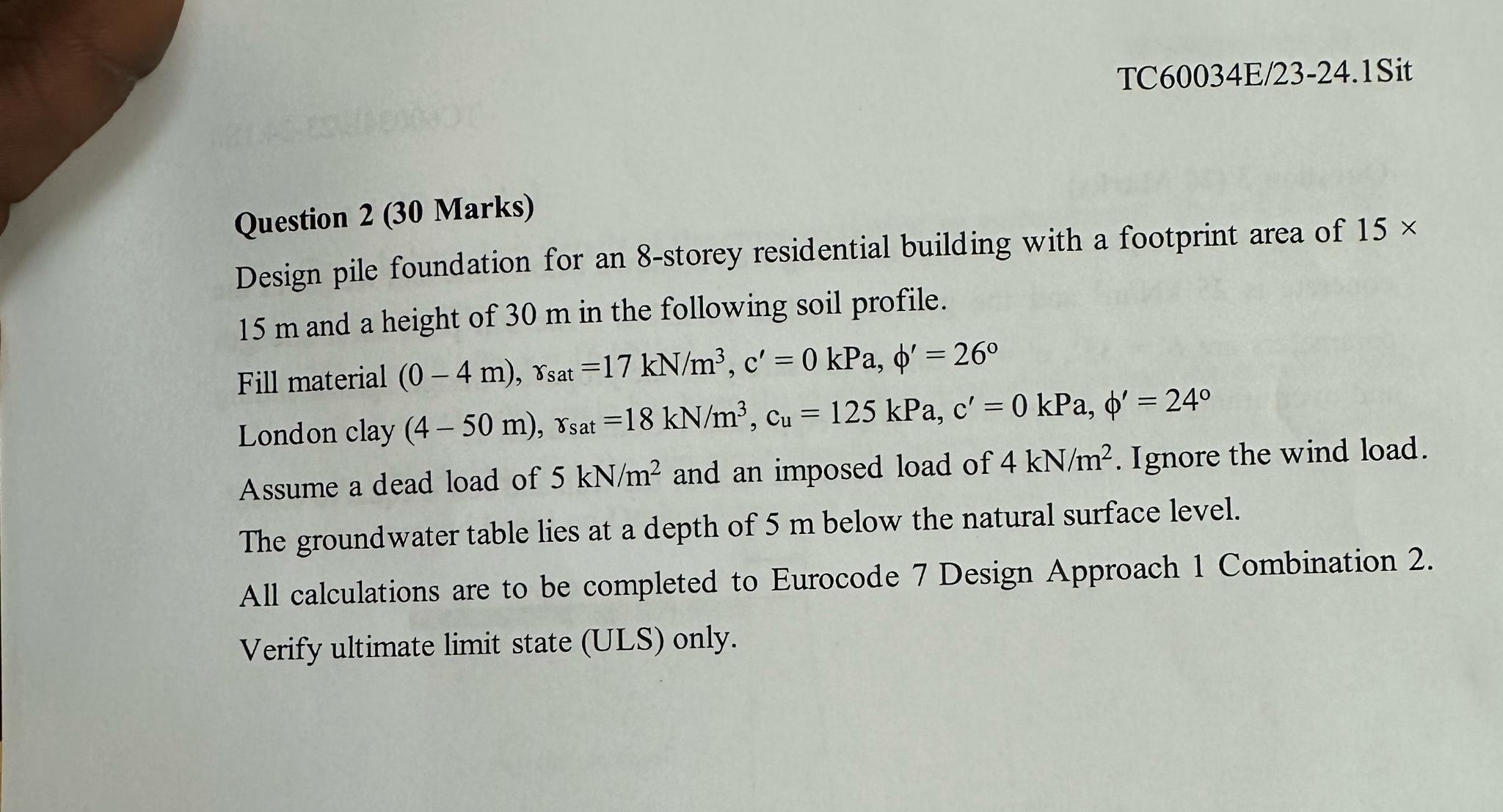

TC$60034$E$/23-24\mathrm{.}1$Sit

Question $2(30$ Marks$)$

Design pile foundation for an $8-$storey residential building with a footprint area of $1515m$ and a height of $30m$ in the following soil profile.

Fill material $(0-4m),{}_{\text{s}\text{a}\text{t}}=17k\frac{N}{m^3},c^{\text{'}}=0$kPa,${}^{\text{'}}=26$

London clay $(4-50m),r_{\text{s}\text{a}\text{t}}=18k\frac{N}{m^3},c_u=125$kPa,$c^{\text{'}}=0$kPa,${}^{\text{'}}=24$

Assume a dead load of $5k\frac{N}{m^2}$ and an imposed load of $4k\frac{N}{m^2}.$ Ignore the wind load.

The ground water table lies at a depth of $5m$ below the natural surface level.

All calculations are to be completed to Eurocode $7$ Design Approach $1$ Combination $2.$ Verify ultimate limit state $($ULS$)$ only.
