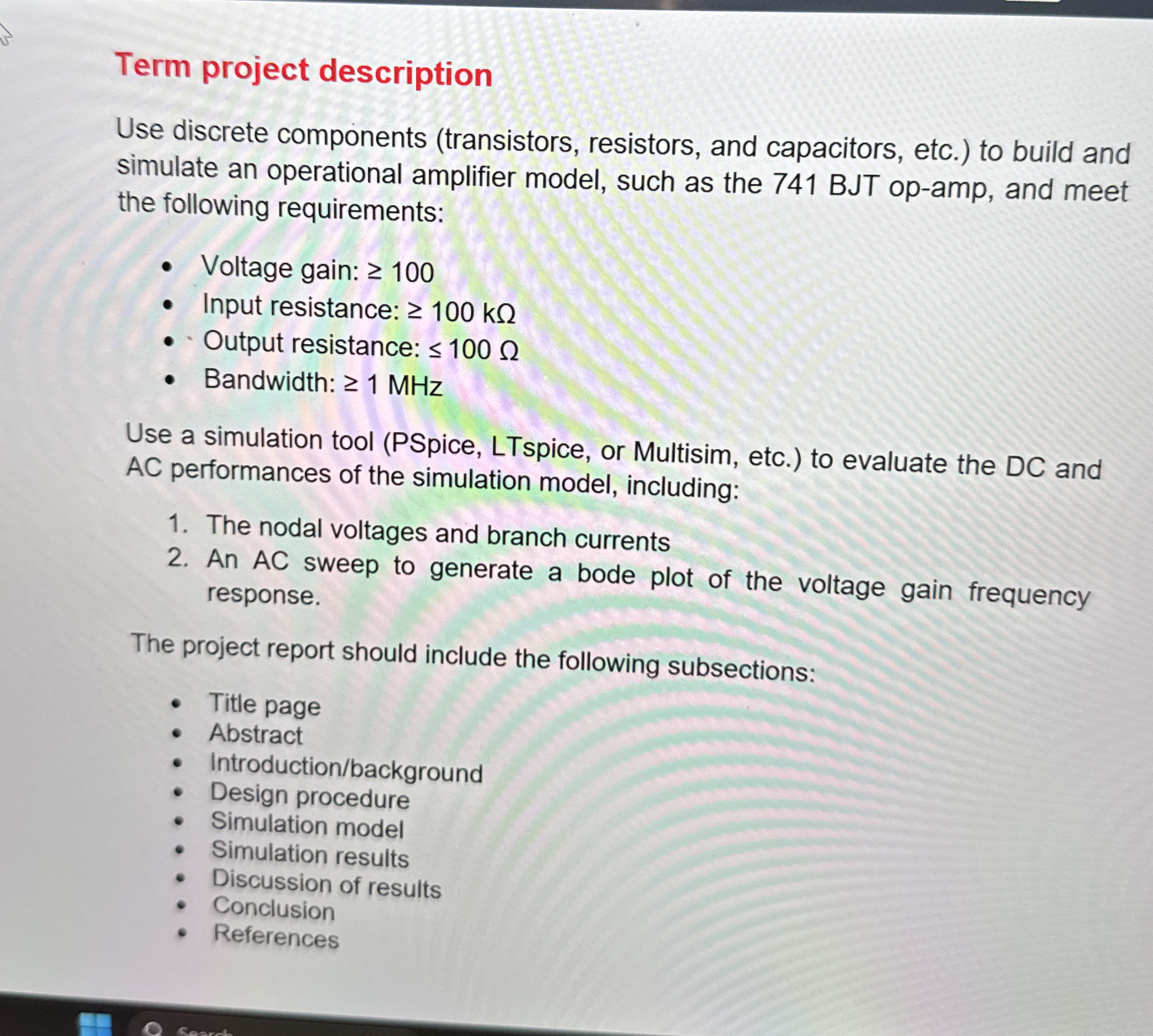

Term project description

Use discrete components $($transistors$,$ resistors, and capacitors, etc.$)$ to build and simulate an operational amplifier model, such as the $741$ BJT op$-$amp, and meet the following requirements:

Voltage gain: $100$

Input resistance: $100k$

Output resistance: $100$

Bandwidth: $1MHz$

Use a simulation tool $($PSpice$,$ LTspice, or Multisim, etc.$)$ to evaluate the DC and AC performances of the simulation model, including:

The nodal voltages and branch currents

An $AC$ sweep to generate a bode plot of the voltage gain frequency response.

The project report should include the following subsections:

Title page

Abstract

Introduction$/$background

Design procedure

Simulation model

Simulation results

Discussion of results

Conclusion

References
