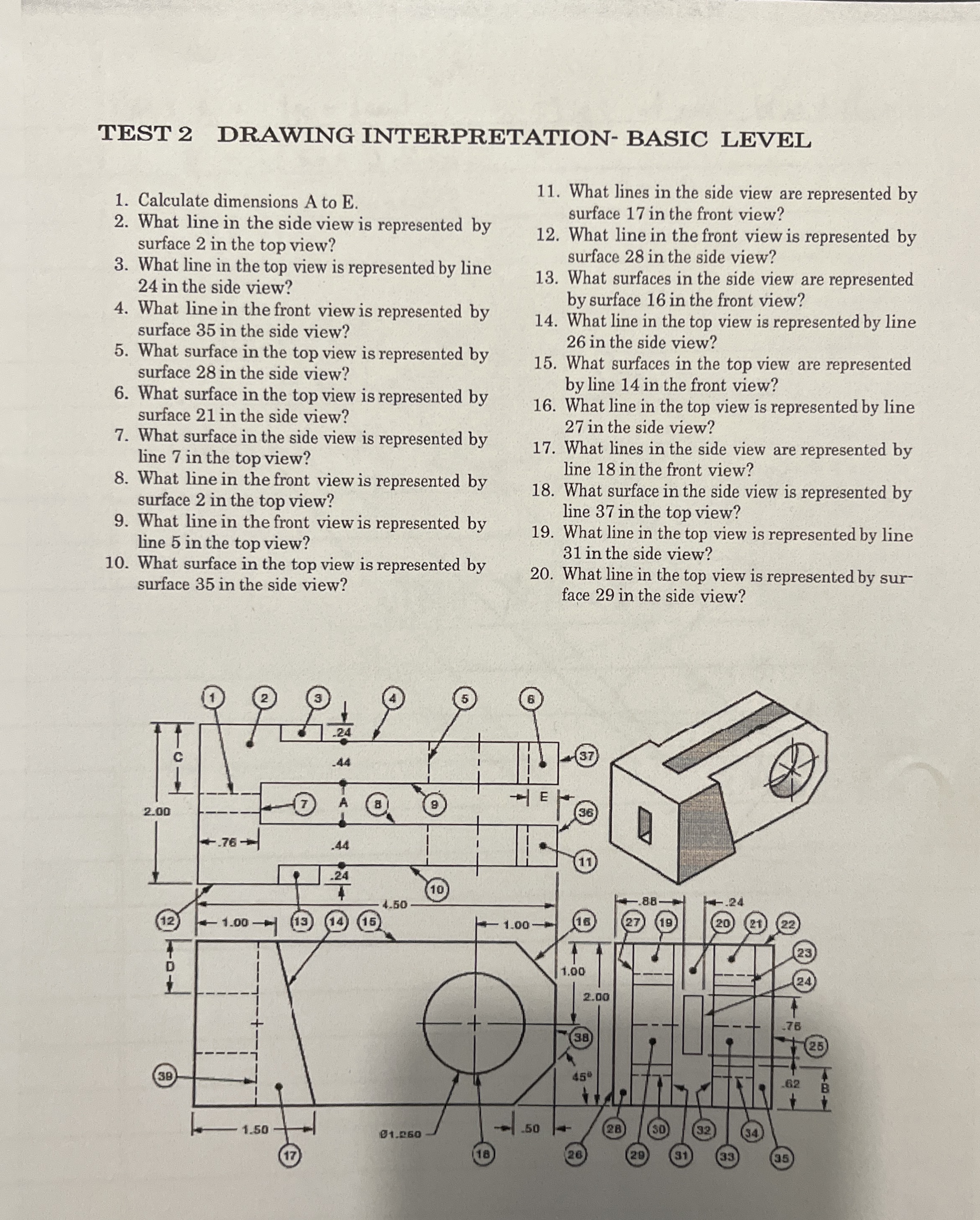

TEST $2$ DRAWING INTERPRETATION$-$ BASIC LEVEL

Calculate dimensions A to E $.$

What line in the side view is represented by surface $2$ in the top view?

What line in the top view is represented by line $24$ in the side view?

What line in the front view is represented by surface $35$ in the side view?

What surface in the top view is represented by surface $28$ in the side view?

What surface in the top view is represented by surface $21$ in the side view?

What surface in the side view is represented by line $7$ in the top view?

What line in the front view is represented by surface $2$ in the top view?

What line in the front view is represented by line $5$ in the top view?

What surface in the top view is represented by surface $35$ in the side view?

What lines in the side view are represented by surface $17$ in the front view?

What line in the front view is represented by surface $28$ in the side view?

What surfaces in the side view are represented by surface $16$ in the front view?

What line in the top view is represented by line $26$ in the side view?

What surfaces in the top view are represented by line $14$ in the front view?

What line in the top view is represented by line $27$ in the side view?

What lines in the side view are represented by line $18$ in the front view?

What surface in the side view is represented by line $37$ in the top view?

What line in the top view is represented by line $31$ in the side view?

What line in the top view is represented by surface $29$ in the side view?
