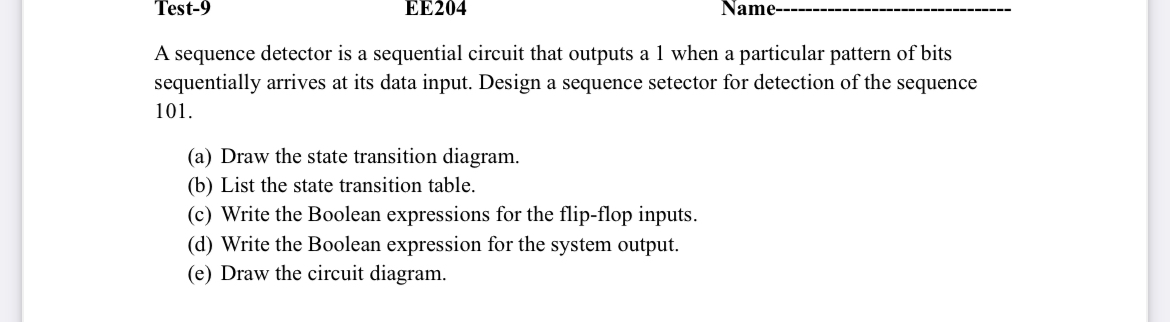

A sequence detector is a sequential circuit that outputs a $1$ when a particular pattern of bits sequentially arrives at its data input. Design a sequence setector for detection of the sequence $101.$

$($a$)$ Draw the state transition diagram.

$($b$)$ List the state transition table.

$($c$)$ Write the Boolean expressions for the flip$-$flop inputs.

$($d$)$ Write the Boolean expression for the system output.

$($e$)$ Draw the circuit diagram.
