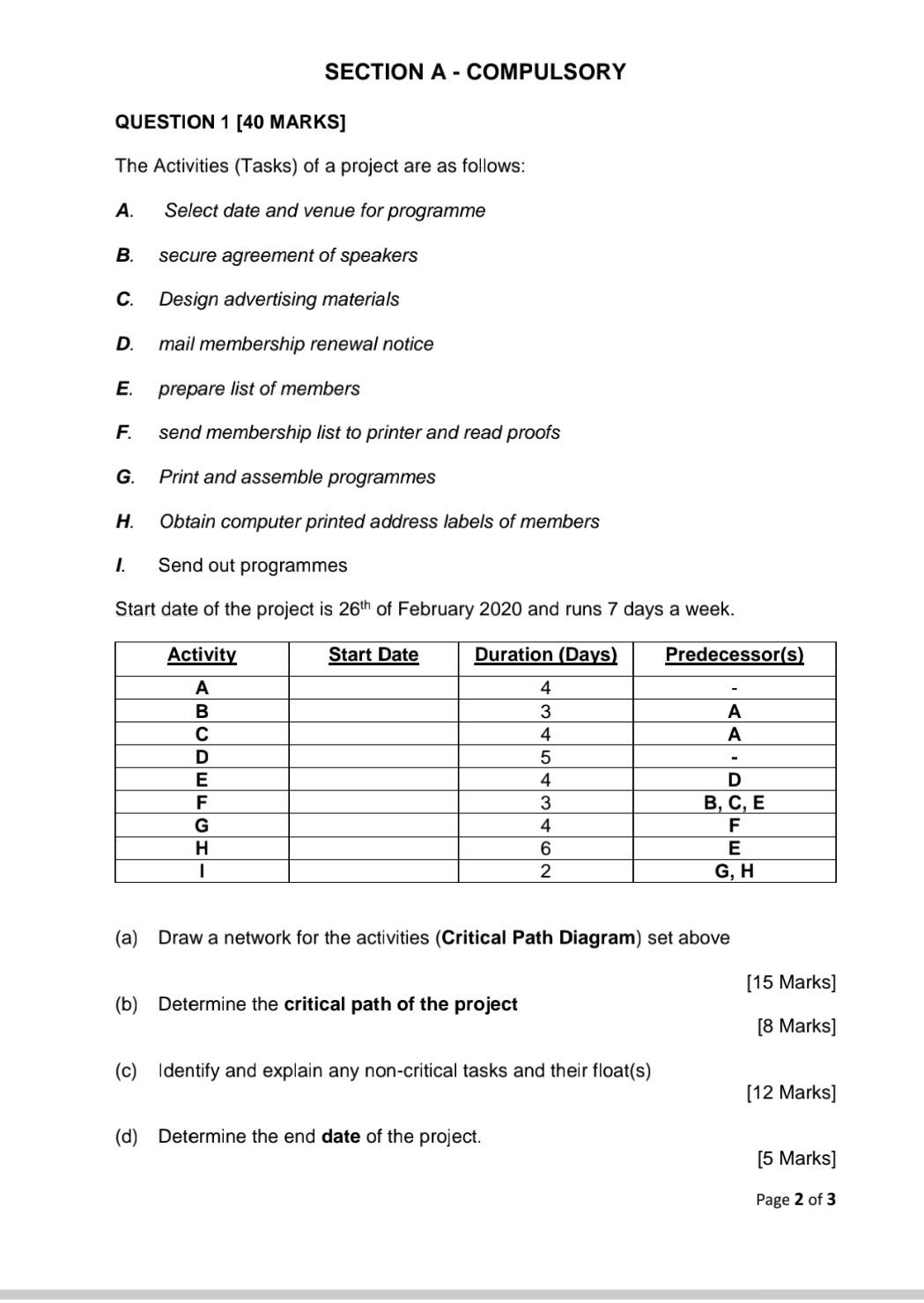

SECTION A-COMPULSORY QUESTION 1 [40 MARKS] The Activities (Tasks) of a project are as follows: A. Select date and venue for programme B. secure agreement of speakers C. Design advertising materials D. mail membership renewal notice E. prepare list of members F. send membership list to printer and read proofs G. Print and assemble programmes H. Obtain computer printed address labels of members 1. Send out programmes Start date of the project is 26th of February 2020 and runs 7 days a week. Activity Start Date Duration (Days) A 4 B 3 C 4 D 5 E 4 F 3 G 4 H 6 I 2 G, H (a) Draw a network for the activities (Critical Path Diagram) set above (b) Determine the critical path of the project (c) Identify and explain any non-critical tasks and their float(s) (d) Determine the end date of the project. Predecessor(s) AADCFE B, C, E [15 Marks] [8 Marks] [12 Marks] [5 Marks] Page 2 of 3
