Question: The 1 2 - ft boom A B has a fixed end A and the tension in cable B C is 5 1 0 lb

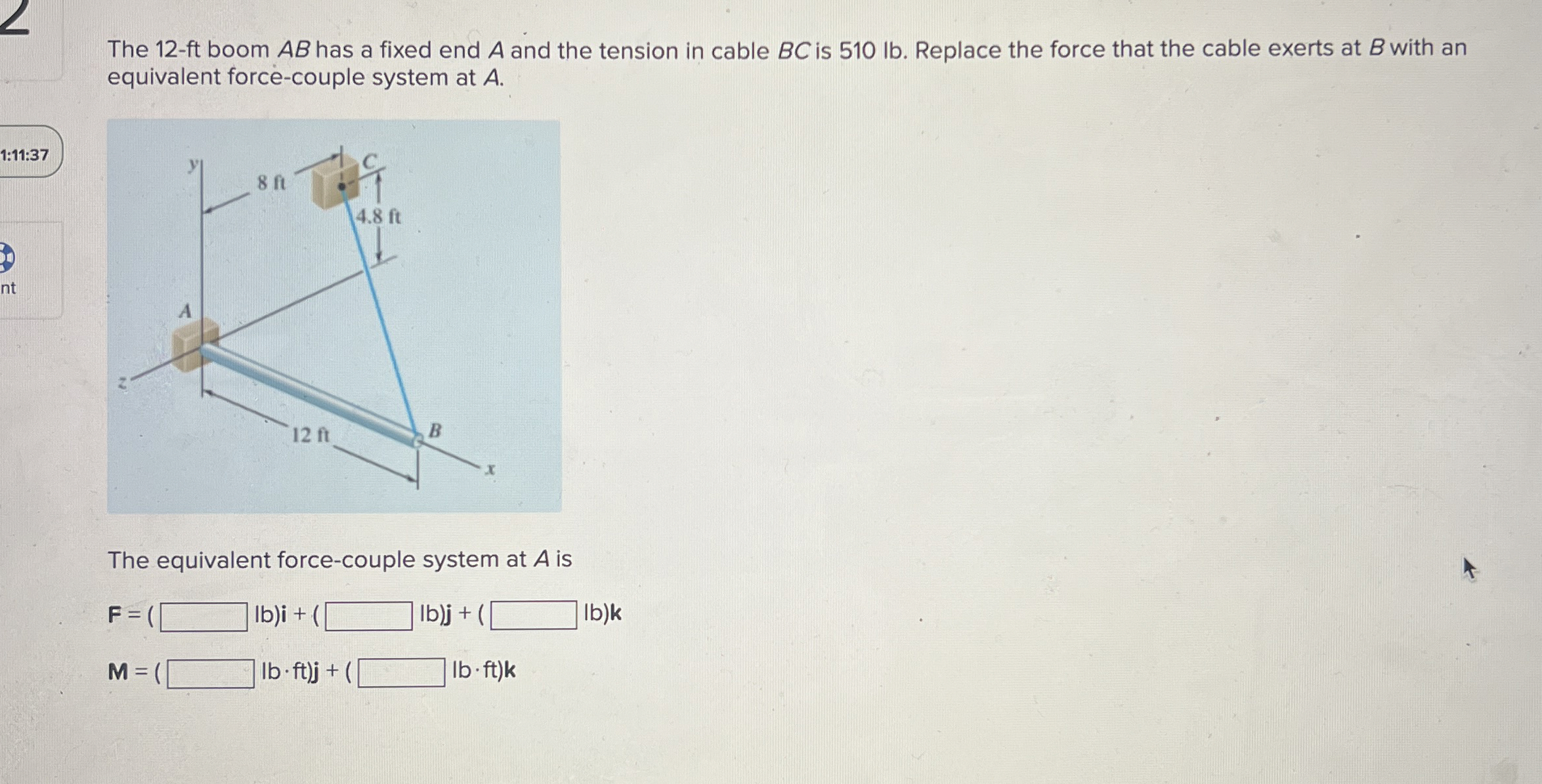

The 12-ft boom AB has a fixed end A and the tension in cable BC is 510 lb . Replace the force that the cable exerts at B with an equivalent force-couple system at A.
The equivalent force-couple system at A is
F=(,Ib)i+(,Ib)j+(,lb)k
M=(,lb*ft)j+(,lb*ft)k
lb*ft
The 1 2 - ft boom A B has a fixed end A and the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

The 12-ft boom AB has a fixed end A, and the tension in cable BC is 570 lb. Replace the force that the cable exerts at B with an equivalent force-couple system at A. y| A 8 ft 12 ft 4.8 ft x
