Question: The 1 . 4 - kip load P is supported by two wooden members of uniform cross section that are joined by the simple glued

The

1.4 -

kip load

P

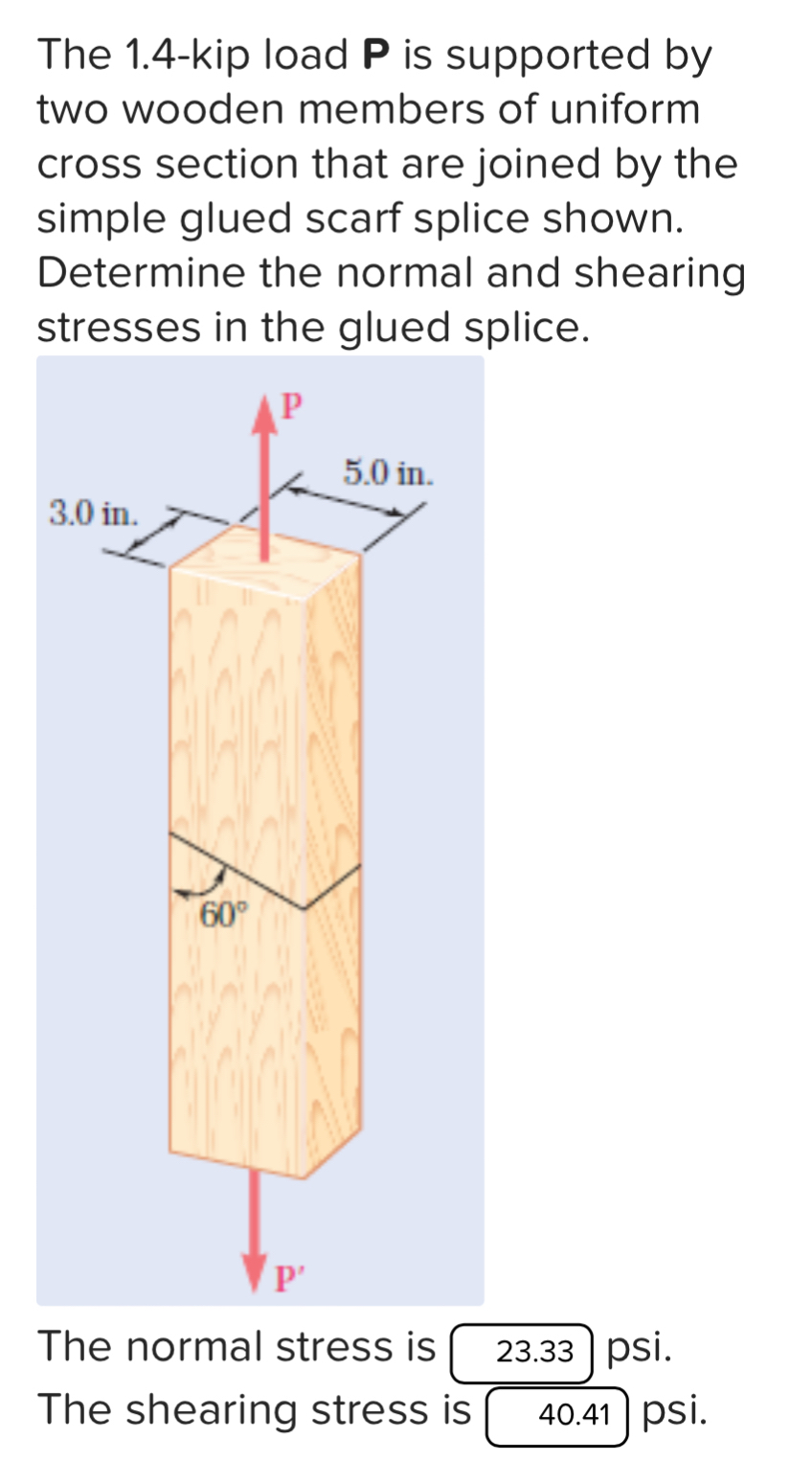

is supported by two wooden members of uniform cross section that are joined by the simple glued scarf splice shown. Determine the normal and shearing stresses in the glued splice.

The normal stress is

q,

psi.

The shearing stress is psi.

The 1 . 4 - kip load P is supported by two wooden

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Please help me ASAP! You can see the answer below the questions. Please show all your work. Thank you!! . Oblique stress on a member PROBLEM 1.31 5.0 in 3.0 in. 7 The 1.4-kip load P is supported by...

7,2o please Mechanics_of_Materials_7th_edit x OFile C:/Users/aser/Downloads/Mechanics_of_Materials_7th_edition_beer.pdf ... 506 of 897 V Draw O Erase 15 *15" Fig. P7.17 Fig. P7.18 7.19 Two wooden...

Two wooden members of uniform rectangular cross section are joined by the simple glued scarf splice shown Knowing that P 11 kN determine the normal and shearing stresses in the glued splice 150 mm P...

BD: 5. Two wooden members of uniform rectangular cross section are joined by the simple glued scarf splice shown. Knowing that P = 11 kN, determine the normal and shearing stresses in the glued...
