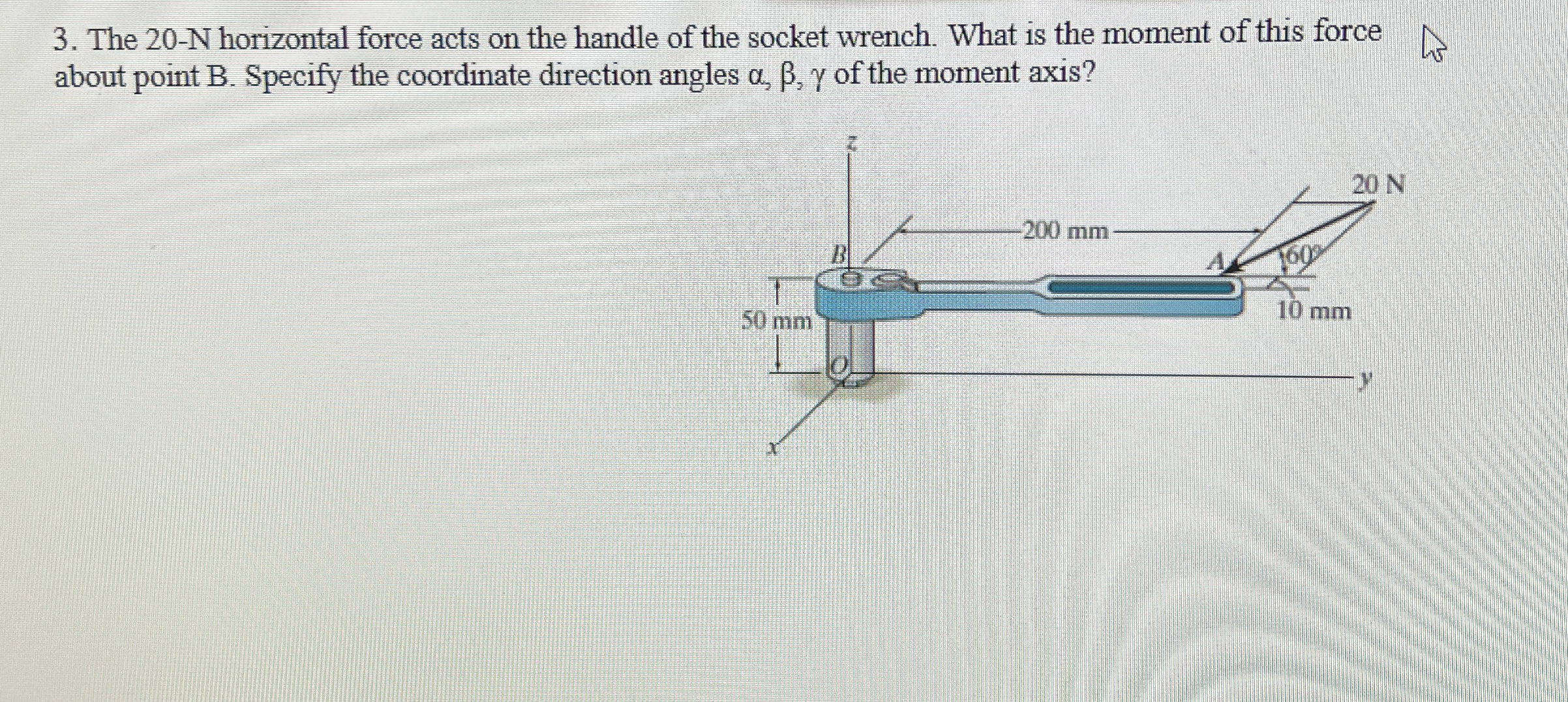

Question: The 2 0 - N horizontal force acts on the handle of the socket wrench. What is the moment of this force about point B

The 20- N horizontal force acts on the handle of the socket wrench. What is the moment of this force
about point B. Specify the coordinate direction angles ,, of the moment axis?
The 2 0 - N horizontal force acts on the handle

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The 3 0 N horizontal force acts on the handle of the socket wrench. Determine the moment of the force about point O . Specify the coordinate direction angles a , b , Y of the moment axis.

Q:

The 2 0 N horizontal force acts on the handle of the socket wrench. Find the moment of the force about point B . Enter the x - y - , and z - components of the moment separately in Q 7 , Q 8 , and Q 9...

Q:

The 20-N horizontal force acts on the handle of the socket wrench. Determine the moment of this force about point O. Specify the coordinate direction angles a, b, g of the moment axis. 20 N -200 mm B...

Q:

The 20-N horizontal force acts on the handle of the socket wrench. What is the moment of this force about point B. Specify the coordinate direction angles , , of the moment axis. 20 N -200 mm- B A...

Q:

The 2 0 - N horizontal force acts on the handle of the socket wrench. Determine the moment of this force about point O . Specify the coordinate direction angles of the moment axis. Determine the...

Q:

Student Name: CSUID: HW 0 8 - # 1 Wrench The 2 0 - N horizontal force acts on the handle of the socket wrench to tighten a nut. A . Determine the moment of this force about point O . B . Which moment...

Q:

The horizontal 30-N force acts on the handle of the wrench. Determine the moment of this force about point O. Specify the coordinate direction angles ?, ?, ? of the moment axis. 30 N -200 mm 10 mm 50...

Q:

The horizontal force F acts on the handle of the wrench. Determine the moment of this force about point O. Specify the coordinate direction angles , , of the moment axis. Given: F = 30 N c = 10 mm a...

Q:

A wrench is a system consisting of a single force and a single couple moment which is parallel with the force. Given a system consisting of N forces and M couple moments the goal is to reduce this to...
