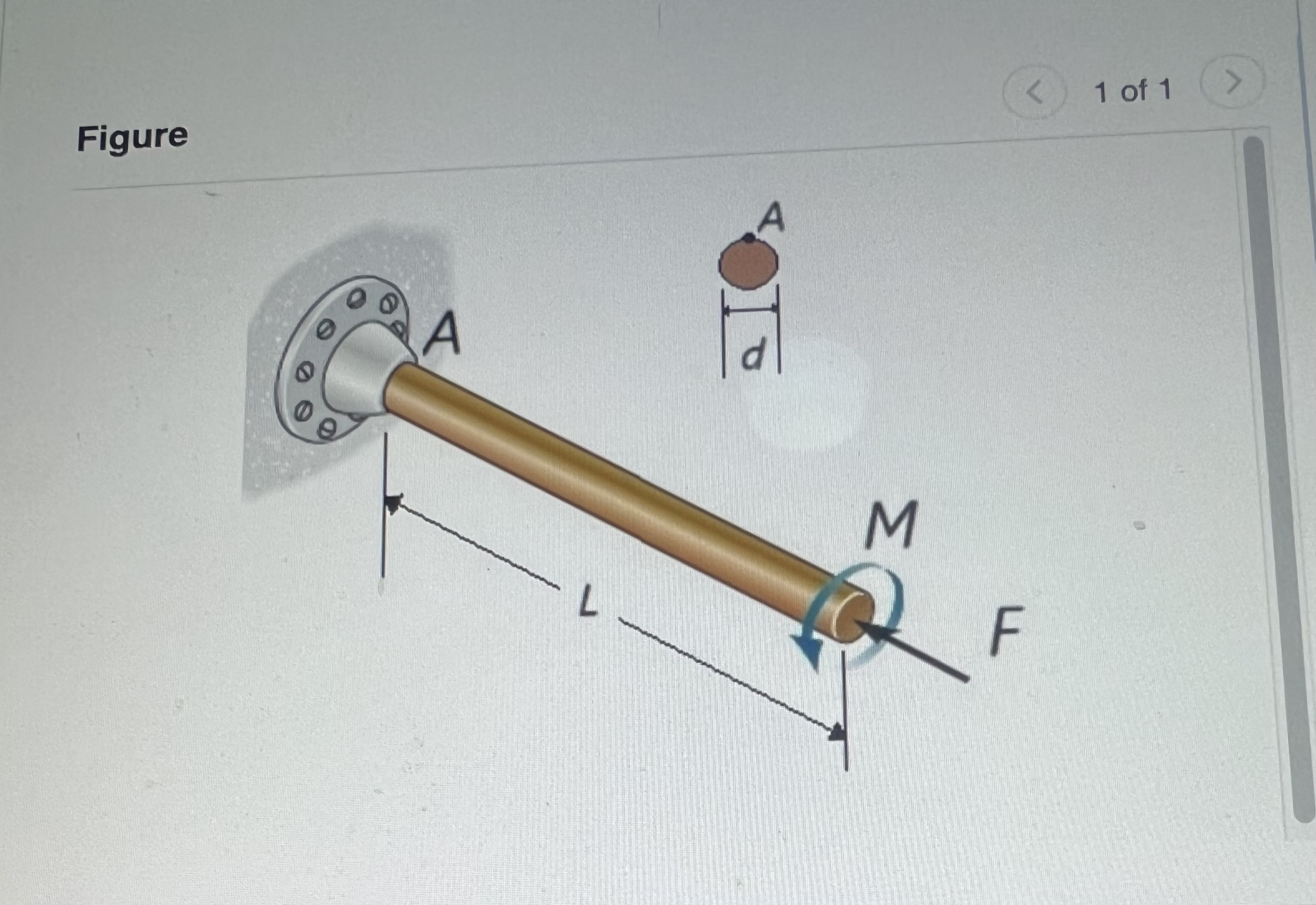

Question: The 2 . 6 in . diameter, L = 4 ft , long rod is made from steel A 3 6 , and F =

The

2.6

.

diameter, L

= 4

,

long rod is made from steel A

36,

and F

= 80

kip, MA

= 16

kipft. Use w factor of safety of

2

against yielding faliure. Determine the normal and shear stresses at point A of the base, determine the in plane principal stresses, and determine the critical load for which the system wipp fail by buckling
