Question: The 3 3 0 - k g , 6 - m - wide rectangular gate shown in the figure is hinged at B and leans

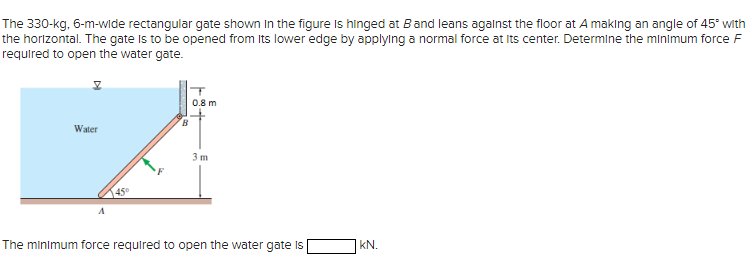

The 330-kg,6-m-wide rectangular gate shown in the figure is hinged at B and leans against the floor at A making an angle of 45 with
the horizontal. The gate is to be opened from its lower edge by applying a normal force at its center. Determine the minimum force F
required to open the water gate.
The minimum force required to open the water gate is
kN .
The 3 3 0 - k g , 6 - m - wide rectangular gate

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
