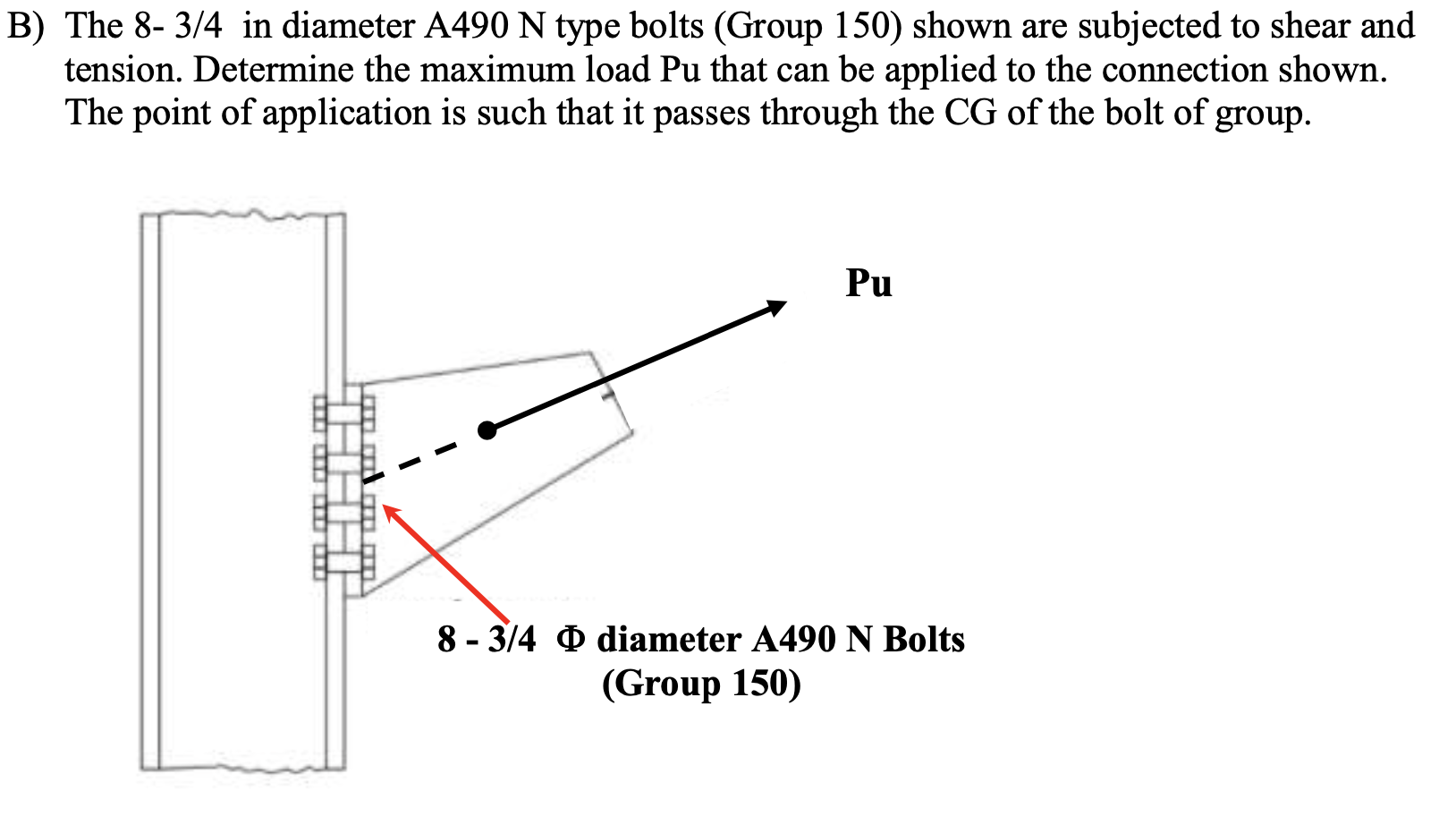

The $8-3/4$ in diameter A$490$ N type bolts $($Group $150)$ shown are subjected to shear and

tension. Determine the maximum load Pu that can be applied to the connection shown.

The point of application is such that it passes through the CG of the bolt of group.

Pu

Pu

$8-3/4$diameter A$490$ N Bolts

$($Group $150)$ B$)$ The $\backslash (8-3/4\backslash )$ in diameter A$490$ N type bolts $($Group $150)$ shown are subjected to shear and tension. Determine the maximum load Pu that can be applied to the connection shown. The point of application is such that it passes through the CG of the bolt of group.
