Question: The answer to the same question in another Chegg link is incorrect, please solve it again. Thanks. An irreversible elemental reaction A2P It is carried

The answer to the same question in another Chegg link is incorrect, please solve it again. Thanks.

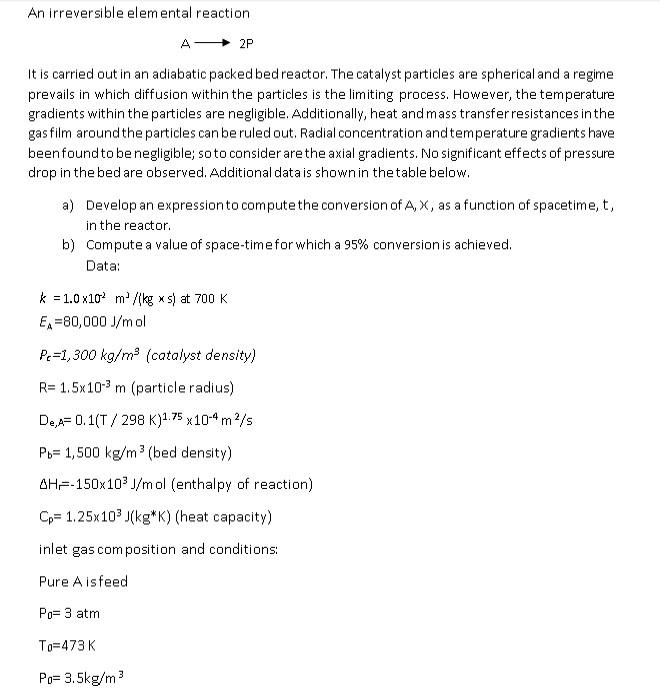

An irreversible elemental reaction A2P It is carried out in an adiabatic packed bed reactor. The catalyst particles are spherical and a regime prevails in which diffusion within the particles is the limiting process. However, the temperature gradients within the particles are negligible. Additionally, heat and mass transfer resistances in the gas film around the particles can be ruled out. Radial concentration and temperature gradients have been found to be negligible; so to consider are the axial gradients. No significant effects of pressure drop in the bed are observed. Additional datais shown in the table below. a) Develop an expression to compute the conversion of A,X, as a function of spacetime, t, in the reactor. b) Compute a value of space-time for which a 95% conversion is achieved. Data: k=1.0102m3/kgs)at700KEA=80,000J/molPc=1,300kg/m3(catalystdensity)R=1.5103m(particleradius)De,A=0.1(T/298K)1.75104m2/sPb=1,500kg/m3(beddensity)H=150103J/mol(enthalpyofreaction)CP=1.25103J(kgK)(heatcapacity) inlet gas com position and conditions: Pure A isfeed P0=3atmT0=473KP0=3.5kg/m3
