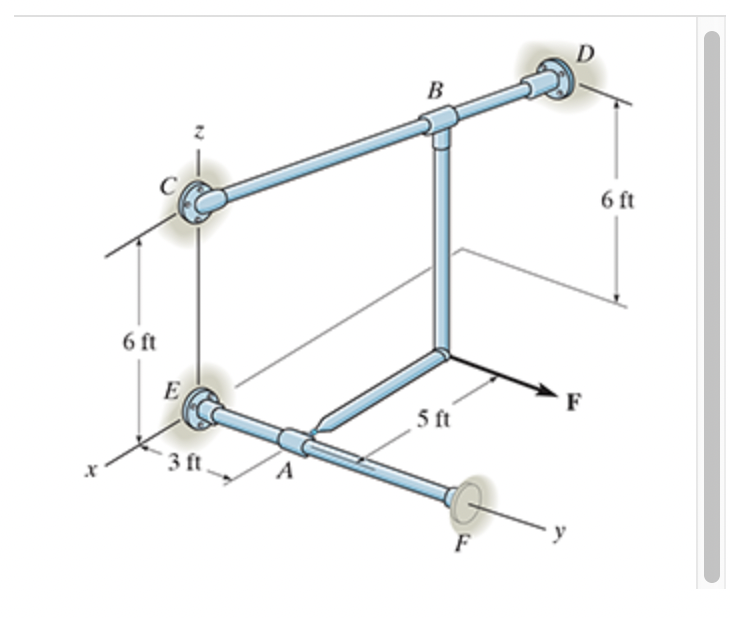

The bar AB is supported by two smooth collars as shown in $($Figure $1).$ At A the connection is with a ball$-$and$-$socket joint and at B it is a rigid attachment. Suppose that F $=55$ lb load is applied to the bar. Determine the $\backslash ($ x$,$ y$,$ z $\backslash )$ components of reaction force at $\backslash ($ A $\backslash )$ using scalar notation.

Express your answers in pounds to three significant figures. Enter your answers separated by commas.

$\backslash [$

A$\_\{$x$\},$ A$\_\{$y$\},$ A$\_\{$z$\}=[\backslash$square$]$

$\backslash ]$

Part B

Determine the $\backslash ($ x$,$ y$,$ z $\backslash )$ components of reaction force at $\backslash ($ B $\backslash )$ using scalar notation.

Express your answers in pounds to three significant figures. Enter your answers separated by commas.

Request Answer

Part C

Determine the $\backslash ($ x$,$ y$,$ z $\backslash )$ components of the moment of reaction at $\backslash ($ B $\backslash )$ using scalar notation.

Express your answers in pound$-$feet to three significant figures. Enter your answers separated by commas.
