Question: The beam - column is fixed to the floor and supports the load as shown in ( Figure 1 ) . Take F 1 =

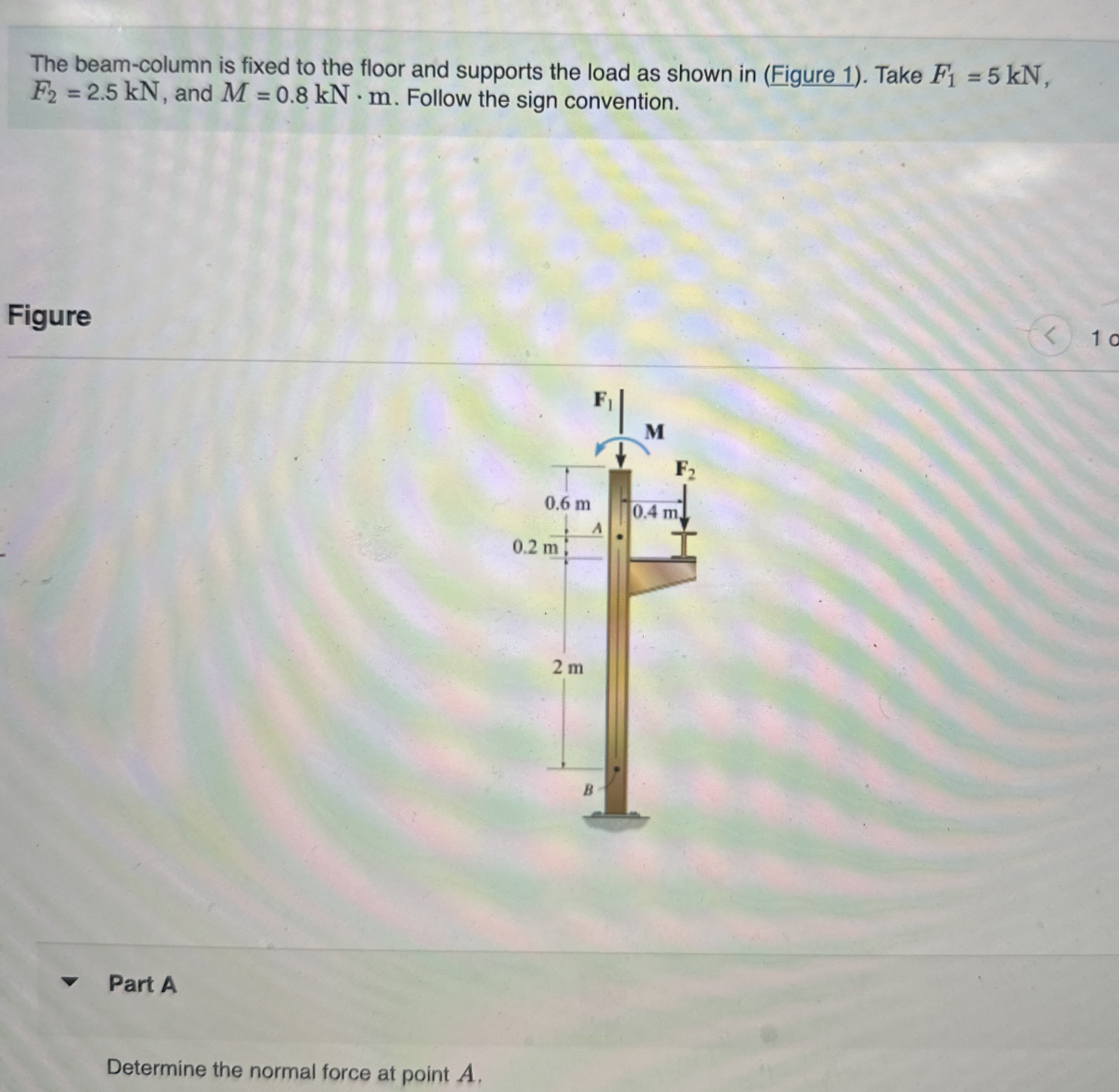

The beam-column is fixed to the floor and supports the load as shown in (Figure 1). Take F1=5kN,F2=2.5kN, and M=0.8kN*m. Follow the sign convention.
Figure
10
Part A
Determine the normal force at point A.
Part B
Determine the shear force at point A.
Part C
Determine the moment at point A.
Part D
Determine the normal force at point B.
Part E
Determine the shear force at point B.
Part F
Determine the moment at point B.
