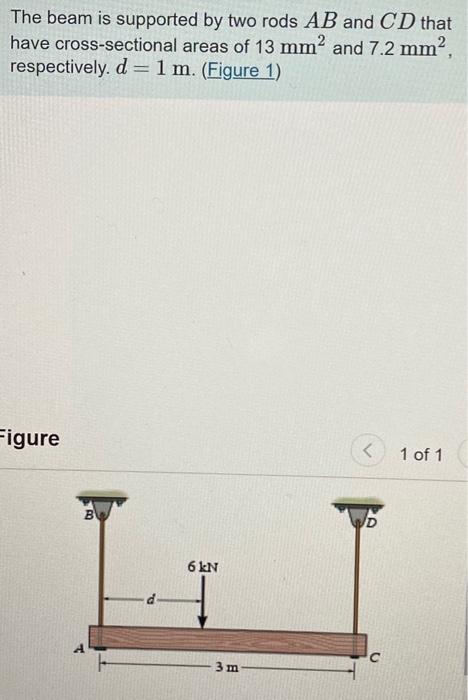

Question: The beam is supported by two rods AB and CD that have cross-sectional areas of 13mm2 and 7.2mm2, respectively. d=1m. ( Figure 1 ) Figure

The beam is supported by two rods AB and CD that have cross-sectional areas of 13mm2 and 7.2mm2, respectively. d=1m. ( Figure 1 ) Figure Determine the average normal stress in rod AB. Express your answer to three significant figures and include appropriate units. Part B Determine the average normal stress in rod CD. Express your answer to three significant figures and include appropriate units

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

The beam is supported by two rods A B and C D that have cross - sectional areas of 1 4 m m 2 and 9 m m 2 respectively. ( Figure 1 ) Determine the position d of the 6 - k N load so that the average...

The beam is supported by two rods A B and C D that have cross - sectional areas of 1 6 m m 2 and 7 m m 2 , respectively. ( Figure 1 ) Determine the position d of the 6 - k N load so that the average...

Part A\ The beam is supported by two rods AB and CD that have cross-sectional areas of 18mm^(2) and 8mm^(2) . respectively. (Figure 1)-\ Parta\ Determine the position d of the 6-kN load so that the...

The uniform beam is supported by two rods AB and CD that have cross - sectional areas of 1 5 mm ^ 2 and 1 0 mm ^ 2 , respectively. Determine the intensity w of the distributed load so that the...

The beam is supported by two rods A B and C D that have cross - sectional areas of 1 8 m m 2 and 9 m m 2 , respectively. Part A Determine the position d of the 6 - k N load so that the average normal...

1 - 4 6 . The beam is supported by two rods A B and C D that have cross - sectional areas of 1 2 m m 2 and 8 m m 2 , respectively. If d = 1 m , determine the average normal stress in each rod. 1 - 4...

The beam is supported by two rods A B , and C D that have cross - sectional areas of 1 4 m m 2 and 9 m m 2 , respectively. Take d = 1 m ( Figure 1 ) Figure Determine the average normal stress in rod...

The uniform beam is supported by two rods A B and C D that have cross - sectional areas of 1 0 m m 2 and 1 5 m m 2 , respectively. ( Figure 1 ) Part A Determine the intensity w of the distributed...

The beam is supported by two rods A B and C D that have cross - sectional areas of 1 1 m m 2 and 8 m m 2 , respectively. Take d = 1 m . ( Figure 1 ) Part A Determine the average normal stress in rod...

The beam is supported by two rods A B and C D that have cross - sectional areas of 1 2 m m 2 and 8 m m 2 , respectively. If d = 1 m , determine the average normal stress in each rod.
