Question: The beam section below is solid and homogenous and has the following dimensions: b 1 = 4 2 m m ( top flange width )

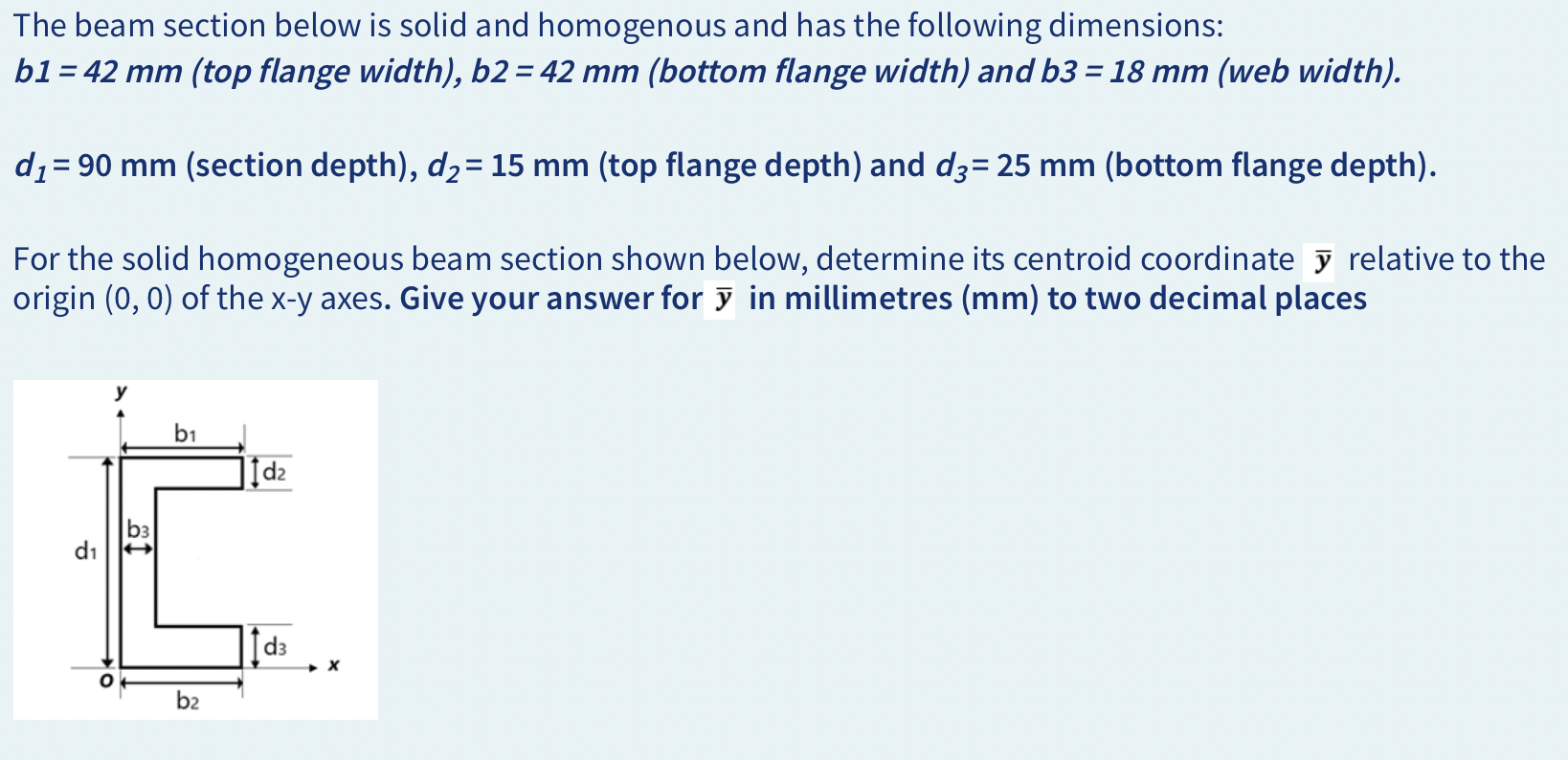

The beam section below is solid and homogenous and has the following dimensions:
b1=42mm(top flange width),b2=42mm(bottom flange width) and b3=18mm(web width).
d1=90mm(section depth),d2=15mm(top flange depth) and d3=25mm(bottom flange depth).
For the solid homogeneous beam section shown below, determine its centroid coordinate ?bar(y) relative to the
origin (0,0) of the x-y axes. Give your answer for ?bar(y) in millimetres (mm) to two decimal places
The beam section below is solid and homogenous

Step by Step Solution

There are 3 Steps involved in it
