Question: The beam section shown in figure ( Figure 1 ) has dimensions H 1 = 2 5 mm , H 2 = 1 1 mm

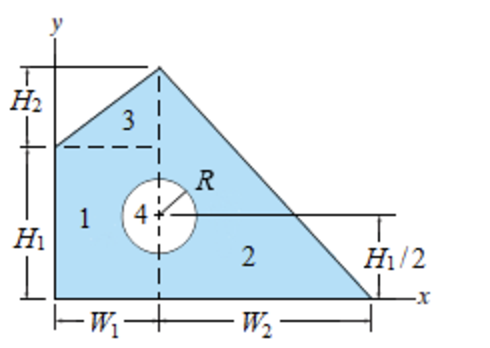

The beam section shown in figure (Figure 1) has dimensions H1=25 mm, H2=11 mm, W1=12 mm, W2=25 mm, and R =6 mm. What is the y-coordinate of the centroid? Use the table below to organize your calculations. (To determine the y
-coordinate of the centroid, calculate y^(~)and then y^(~)A
for each region, add the results, and then divide by the total area, y^(-)= y^(~)A/ A)
.
The beam section shown in figure ( Figure 1 ) has
