Question: The beam supports the triangular distributed load shown below with w m a x = 9 6 0 l b / ft . The reactions

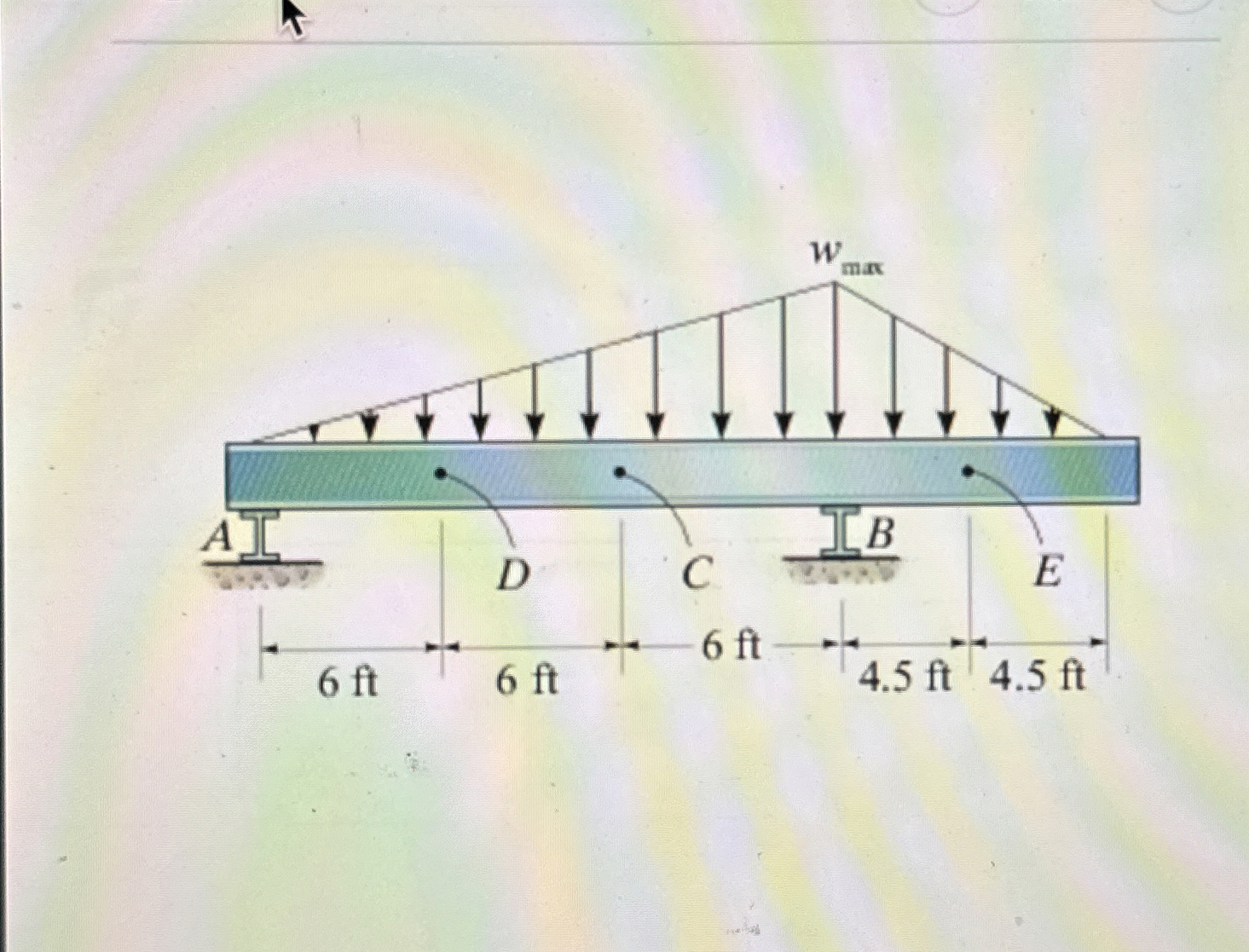

The beam supports the triangular distributed load shown below with wmax=960lb/ft. The reactions at A and B are vertical. (Figure 1)
Part A
Determine the magnitude of the resultant internal normal force on the cross section at point C.
Nc=_______kip
Part B
Determine the magnitude of the resultant internal shear force on the cross section at point C.
Vc=______kip
Part C
Determine the magnitude of the resultant internal bending moment on the cross section at point C.
Mc=_______kip
The beam supports the triangular distributed load

Step by Step Solution

There are 3 Steps involved in it
