Question: The bent rod is supported at A , B , and C by journal bearings, as shown in ( Figure 1 ) . The rod

The bent rod is supported at A, B, and C

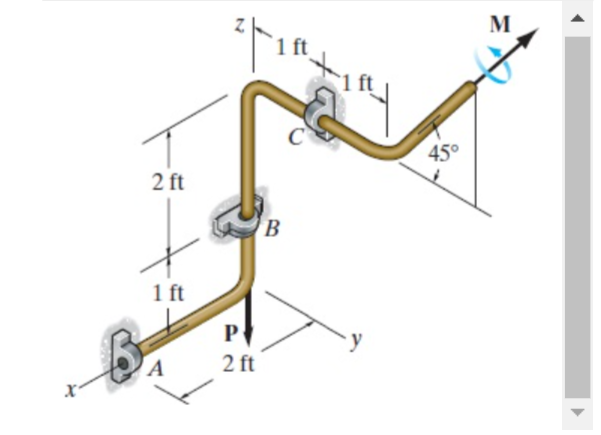

by journal bearings, as shown in (Figure 1). The rod is subjected to the vertical force P=260 lb and the couple moment M
=20 lbft. The bearings are in proper alignment and exert only force reactions on the rod.
1)Determine the components of reaction at the bearing A
2)Determine the components of reaction at the bearing B
3)Determine the components of reaction at the bearing C
The bent rod is supported at A , B , and C by

Step by Step Solution

There are 3 Steps involved in it
