Question: The block - type hand brake shown in the figure has a face width of 1 . 2 5 in . For an estimated actuating

The block-type hand brake shown in the figure has a face width of 1.25 in . For an estimated actuating force of 95 lbf , find the maximum pressure on the shoe and the braking torque. The coefficient of friction \( f \) is 0.280.
Determine the values for each of the following:
The maximum pressure on the shoe \( p_{a}\) is \(\mid \quad \) psi.
The braking torque \( T \) is inlbf.

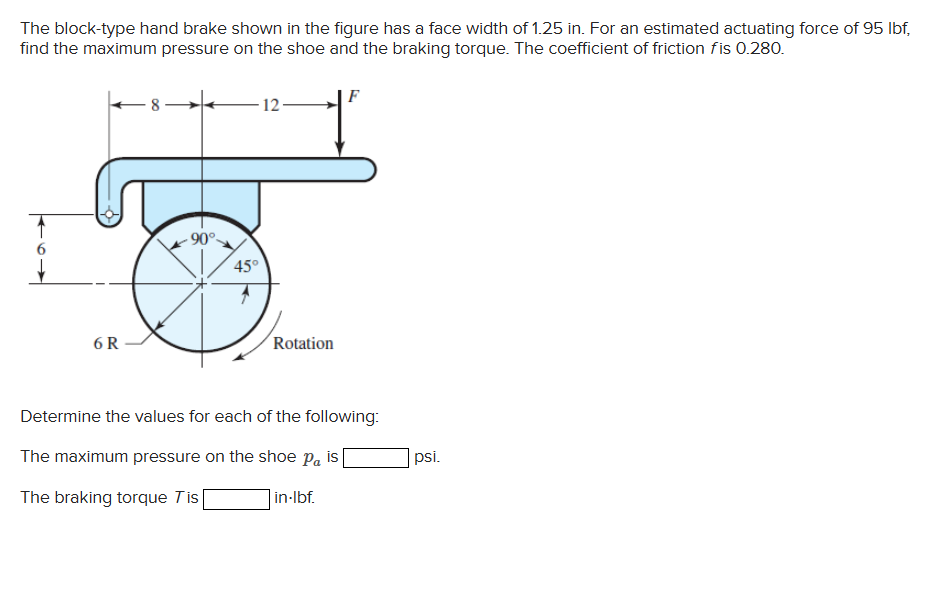

The block - type hand brake shown in the figure
