Question: The Boolean expression is f ( A , B , C , D ) of m 7 representation is a . A ' B ?

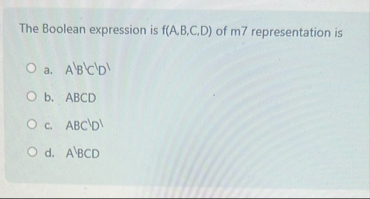

The Boolean expression is f(A,B,C,D) of m7 representation is
a.A'B??C??D??
b. ABCD
c.ABC??D??
d.A'BCD
The Boolean expression is f ( A , B , C , D ) of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Finance Questions!

Q:

d For the following Boolean expression give F a b c d a b d c b a c d i The truth table ii The Karnaugh map iii The minimal sum of products expression

Q:

1a. (5) Simplify the Boolean expression F(x,y,z) = xyz + xyz +xyz using three-variable K-Maps show (a) the Truth Table, (b) the K-Map and (c) simplified function. b. Given the following Truth Table...

Q:

I. Simplify F (A B + B, C) + B ( C" + A') as much as you can using Boolean algebra. 2. For the following truth table a. b. Draw the Karnaugh map for F Use this to produce a minimum 'sum of products'...

Q:

Consider the implementation of the Boolean function Fusing a 3 to 8 decoder. Select the corresponding Boolean expression to F A B C DO DI D2 D3 - 3-to-8 Decoder OR D4 DS D6 D7 Select one Da Fe ABC b....

Q:

for the given Truth Table and simplily using the Part 2. Give the Sum of Minterms, construct the K-Map work and Give SIMPLEST Boolean Expression: Inputs Outputs ABC| Y 0 1 1 1 0 1 Part 3. Give the...

Q:

Given the following Truth Table show (a) unsimplified MINTERM expression (b) form the K-Map and (c) simplified Boolean expression. Inputs Output A B C D Y 0 0 0 0 0 0 0 0 1 1 0 0 1 0 0 0 0 1 1 1 0 1...

Q:

Simplify the following Boolean functions: (a) F (A, B, C, D) = (0, 1, 6, 7, 8, 10, 12, 14) (b) F (A, B, C, D) = (0, 2, 5, 8, 10, 15)

Q:

Use the following truth table to produce a minimum 'sum of products' expression for F A B C D E 0 0 0 0 1 0 0 0 1 x 0 0 1 0 1 0 0 1 1 0 0 1 0 0 X 0 1 0 1 x 0 1 1 0 0 0 1 1 1 0 1 0 0 0 1 1 0 0 1 0 1 0...

Q:

Question Completion Status Use the following truth table to produce a minimum 'sum of products' expression for F A B C D F 0 0 0 0 1 0 0 0 1 x 0 0 1 0 1 0 0 1 1 0 0 1 0 0 X 0 1 0 1 X 0 1 1 0 0 0 1 1...

Q:

3.12) b Please show all steps 142 Chapter 3 Gate-Level Minimization 3.12 Simplify the following Boolean functions: (a)" F (A, B, C, D) = (1, 3, 5, 7, 13, 15) (b) F(A. B. C. D)=(1.3, 6, 9, 11, 12, 14)
