Question: The Boolean function F is given below: F ( A , B , C ) = m ( 0 , 3 , 6 , 7

The Boolean function F is given below:
F(A,B,C)=m(0,3,6,7)

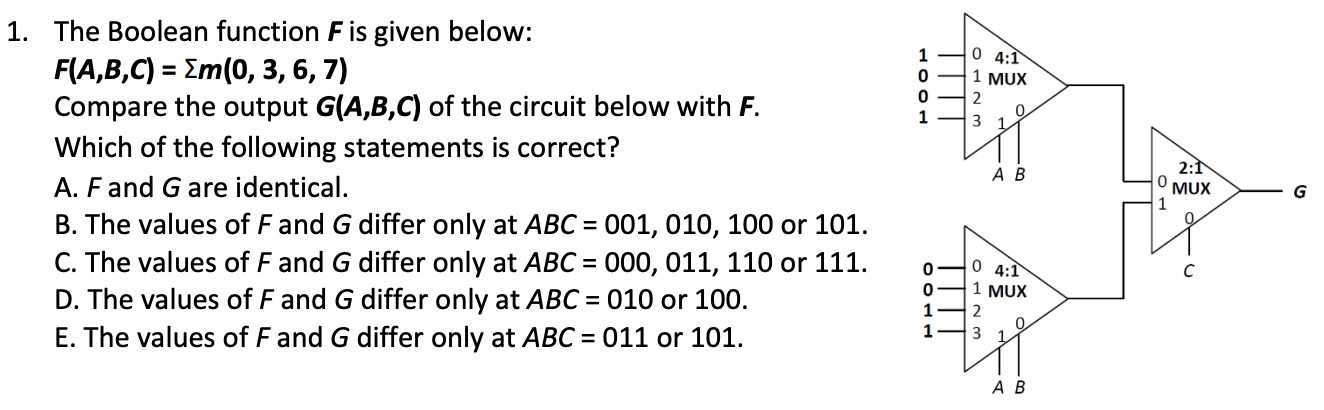

Compare the output G(A,B,C) of the circuit below with F.
Which of the following statements is correct?
A.F and G are identical.
B. The values of F and G differ only at ABC=001,010,100 or 101.
C. The values of F and G differ only at ABC=000,011,110 or 111.
D. The values of F and G differ only at ABC=010 or 100.
E. The values of F and G differ only at ABC=011 or 101.
The Boolean function F is given below: F ( A , B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
