Question: The bracket B C D is hinged at C and attached to a control cable at B . Let F 1 = 2 4 0

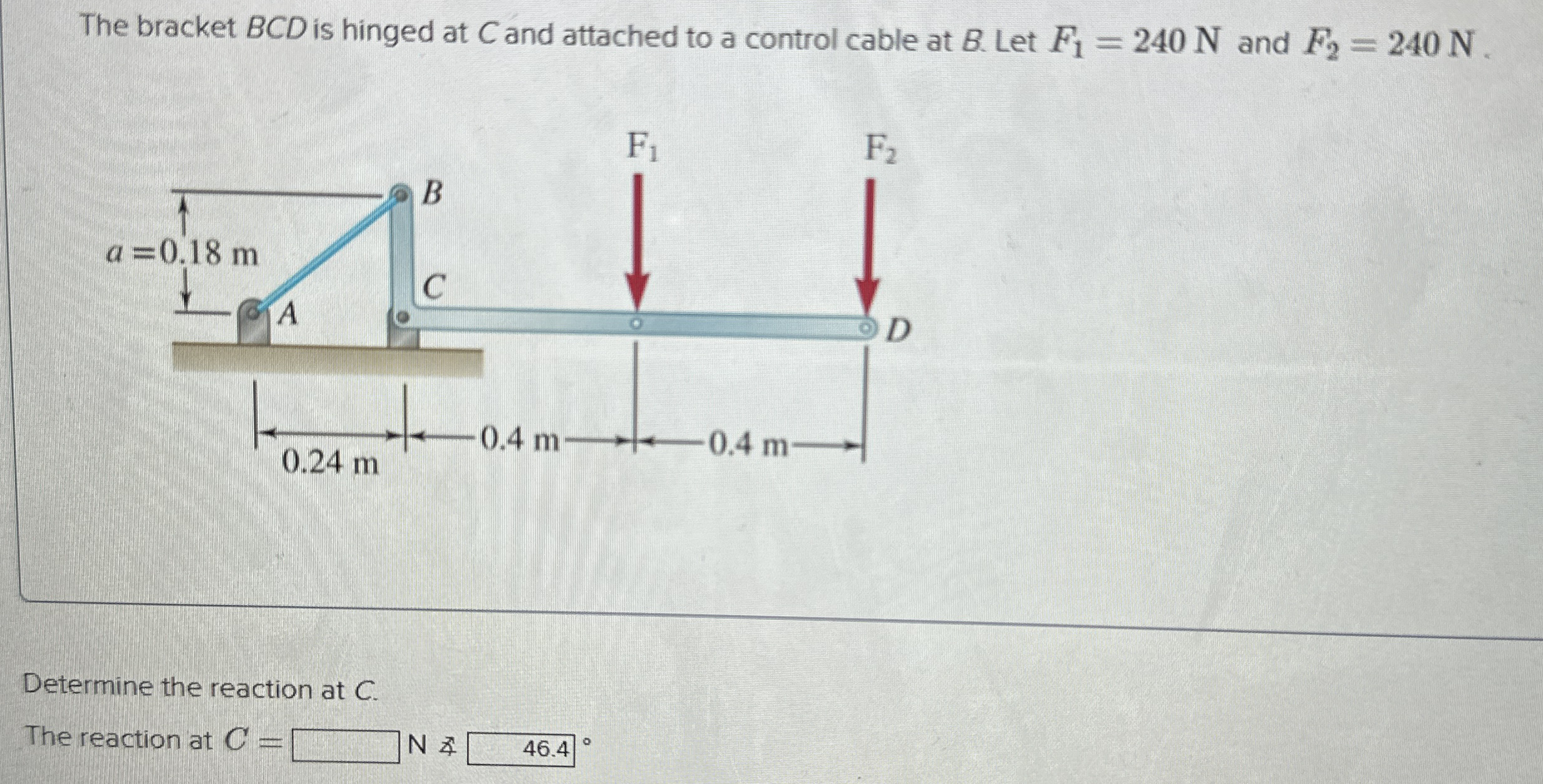

The bracket BCD is hinged at C and attached to a control cable at B. Let F1=240N and F2=240N.
Determine the reaction at C.
The reaction at C= N
The bracket B C D is hinged at C and attached to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
