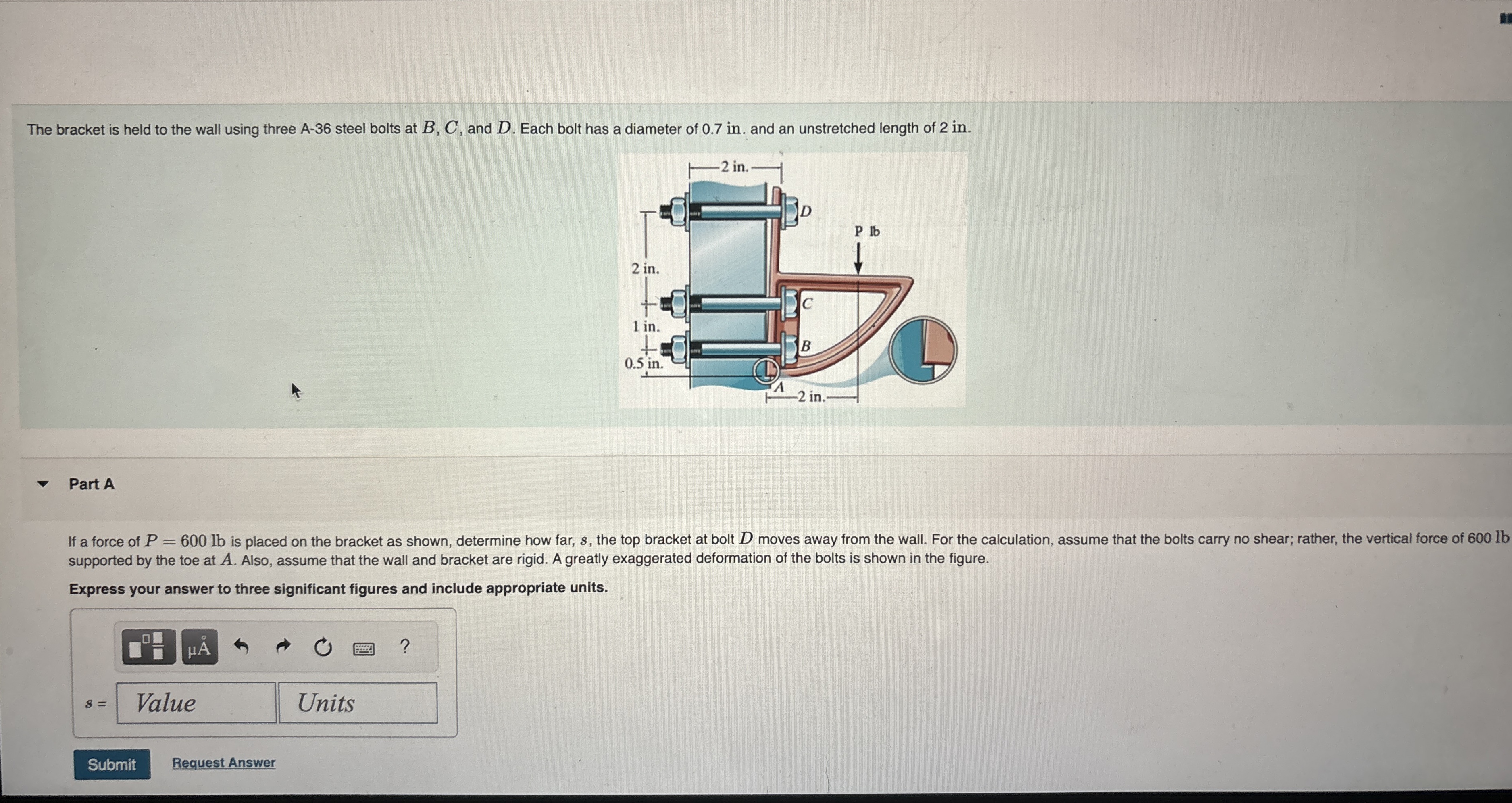

The bracket is held to the wall using three A$-36$ steel bolts at $B,C,$ and $D.$ Each bolt has a diameter of $0\mathrm{.}7$ in $.$ and an unstretched length of $2$ in $.$

Part A

If a force of $P=600lb$ is placed on the bracket as shown, determine how far, $s,$ the top bracket at bolt $D$ moves away from the wall. For the calculation, assume that the bolts carry no shear; rather, the vertical force of $600$ lb supported by the toe at $A.$ Also, assume that the wall and bracket are rigid. A greatly exaggerated deformation of the bolts is shown in the figure.

Express your answer to three significant figures and include appropriate units.
