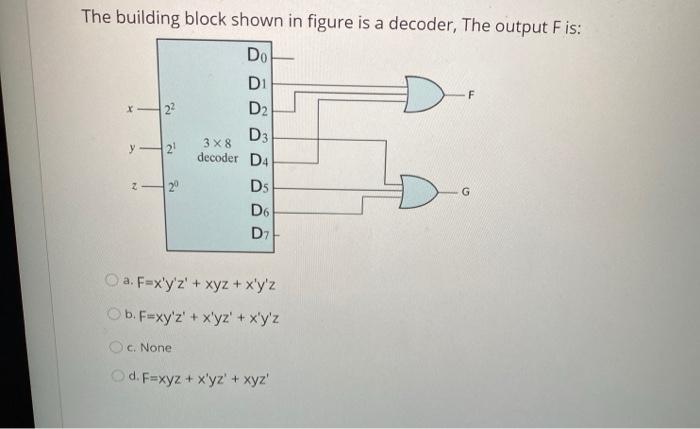

Question: The building block shown in figure is a decoder, The output Fis: DO D1 x 22 D2 y2 2 20 3 X 8 D3 decoder

The building block shown in figure is a decoder, The output Fis: DO D1 x 22 D2 y2 2 20 3 X 8 D3 decoder D4 Ds D6 D7 G O a. F=x'y'z' + xyz + x'y'z b. F=xy'z' + xyz' + xy'z c. None d. F=xyz + xyz + xyz

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Question 5 What is the equivalent function implemented by the following circuit? 00 101 4-to-1 MUX F1 10 11 1 0 O a. F= X AND Y Ob. F= x XORY Oc. F = x XNORY d. F= x ORY A Moving to another question...
