Question: The cantilever beam AB has a rectangular cross section of ( 1 5 0 mathrm { ~mm } times 2 0 0

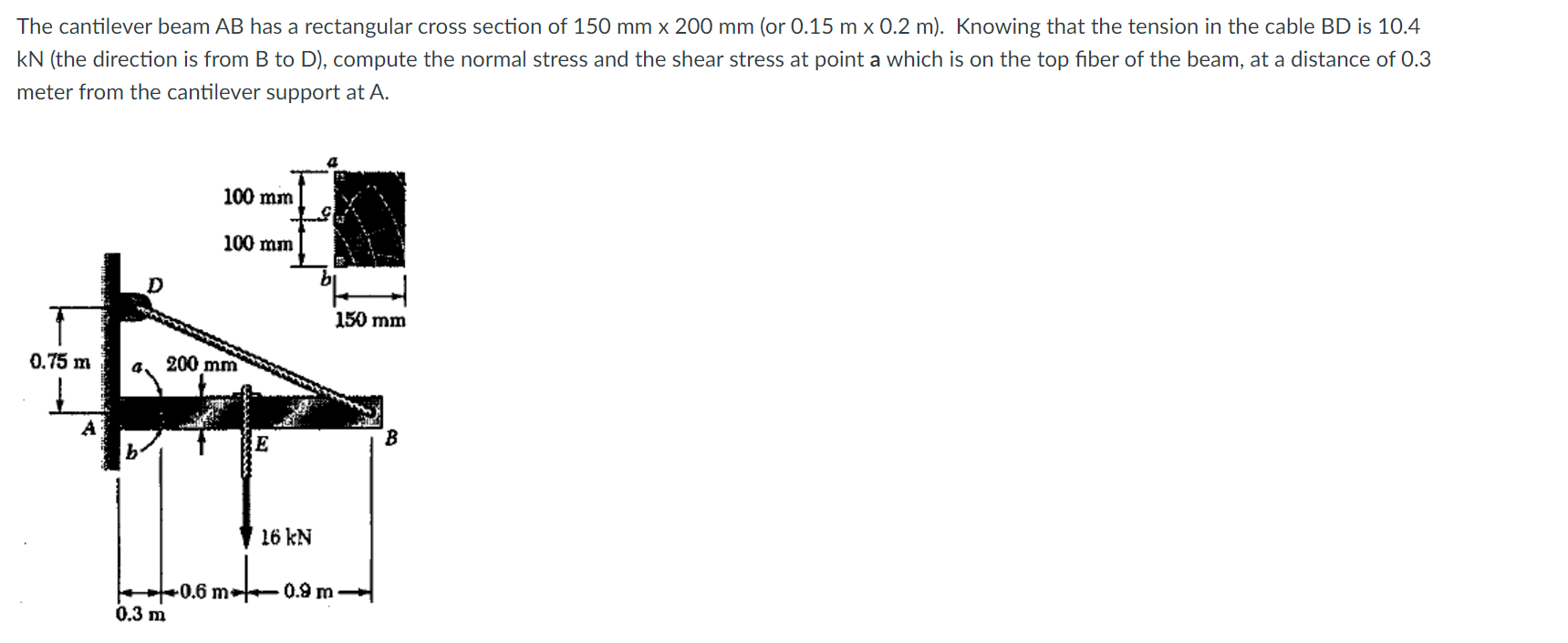

The cantilever beam AB has a rectangular cross section of \(150\mathrm{~mm}\times 200\mathrm{~mm}\)(or \(0.15\mathrm{~m}\times 0.2\mathrm{~m}\)). Knowing that the tension in the cable BD is 10.4 kN (the direction is from B to D ), compute the normal stress and the shear stress at point a which is on the top fiber of the beam, at a distance of 0.3 meter from the cantilever support at \( A \).
The cantilever beam AB has a rectangular cross

Step by Step Solution

There are 3 Steps involved in it
