Question: The chart below is an incomplete output from the Coordinate Measuring Machine (CMM) at your facility. Your boss needs the CMM operational to complete orders

The chart below is an incomplete output from the

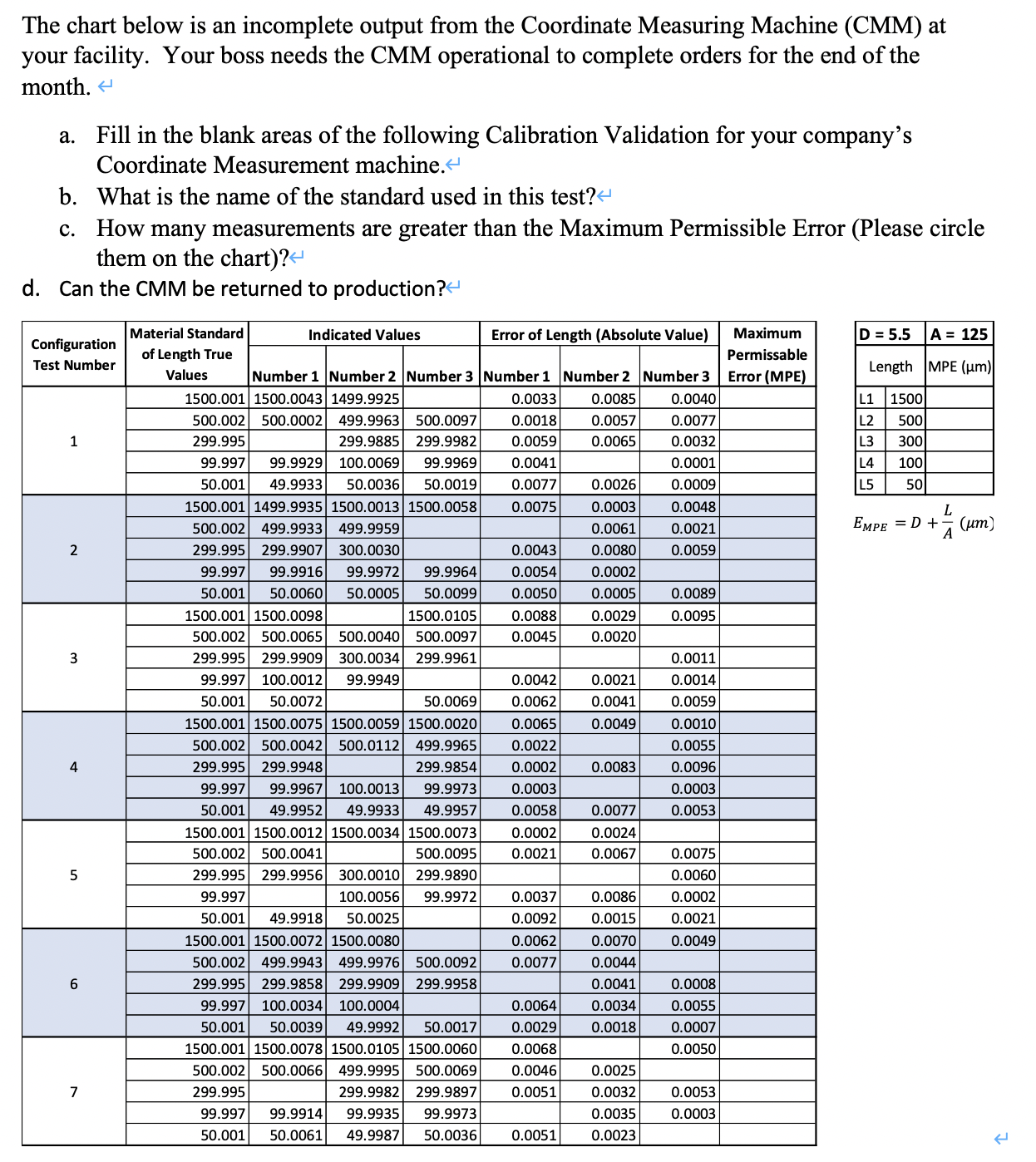

The chart below is an incomplete output from the Coordinate Measuring Machine (CMM) at your facility. Your boss needs the CMM operational to complete orders for the end of the month. + a. Fill in the blank areas of the following Calibration Validation for your company's Coordinate Measurement machine. b. What is the name of the standard used in this test? c. How many measurements are greater than the Maximum Permissible Error (Please circle them on the chart)? d. Can the CMM be returned to production? D = 5.5 A = 125 Configuration Test Number Maximum Permissable Error (MPE) Length MPE (um) 1 L1 1500 L2 500 L3 300 L4 100 L5 50 L EMPE = D + (um) 2 3 Material Standard Indicated Values Error of Length (Absolute Value) of Length True Values Number 1 Number 2 Number 3 Number 1 Number 2 Number 3 1500.001 1500.0043 1499.9925 0.0033 0.0085 0.0040 500.002 500.0002 499.9963 500.0097 0.0018 0.0057 0.0077 299.995 299.9885 299.9982 0.0059 0.0065 0.0032 99.997 99.9929 100.0069 99.9969 0.0041 0.0001 50.001 49.9933 50.0036 50.0019 0.0077 0.0026 0.0009 1500.001 1499.9935 1500.0013 1500.0058 0.0075 0.0003 0.0048 500.002 499.9933 499.9959 0.0061 0.0021 299.995 299.9907 300.0030 0.0043 0.0080 0.0059 99.997 99.9916 99.9972 99.9964 0.0054 0.0002 50.001 50.0060 50.0005 50.0099 0.0050 0.0005 0.0089 1500.001 1500.0098 1500.0105 0.0088 0.0029 0.0095 500.002 500.0065 500.0040 500.0097 0.0045 0.0020 299.995 299.9909 300.0034 299.9961 0.0011 99.997 100.0012 99.9949 0.0042 0.0021 0.0014 50.001 50.0072 50.0069 0.0062 0.0041 0.0059 1500.001 1500.0075 1500.00591500.0020 0.0065 0.0049 0.0010 500.002 500.0042 500.0112 499.9965 0.0022 0.0055 299.995 299.9948 299.9854 0.0002 0.0083 0.0096 99.997 99.9967 100.0013 99.9973 0.0003 0.0003 50.001 49.9952 49.9933 49.9957 0.0058 0.0077 0.0053 1500.001 1500.0012 1500.0034 1500.0073 0.0002 0.0024 500.002 500.0041 500.0095 0.0021 0.0067 0.0075 299.995 299.9956 300.0010 299.9890 0.0060 99.997 100.0056 99.9972 0.0037 0.0086 0.0002 50.001 49.9918 50.0025 0.0092 0.0015 0.0021 1500.001 1500.0072 1500.0080 0.0062 0.0070 0.0049 500.002 499.9943 499.9976 500.0092 0.0077 0.0044 299.995 299.9858 299.9909 299.9958 0.0041 0.0008 99.997 100.0034 100.0004 0.0064 0.0034 0.0055 50.001 50.0039 49.9992 50.0017 0.0029 0.0018 0.0007 1500.001 1500.0078 1500.0105 1500.0060 0.0068 0.0050 500.002 500.0066 499.9995 500.0069 0.0046 0.0025 299.995 299.9982299.9897 0.0051 0.0032 0.0053 99.997 99.9914 99.9935 99.9973 0.0035 0.0003 50.001 50.0061 49.9987 50.0036 0.0051 0.0023 4 5 6 7 The chart below is an incomplete output from the Coordinate Measuring Machine (CMM) at your facility. Your boss needs the CMM operational to complete orders for the end of the month. + a. Fill in the blank areas of the following Calibration Validation for your company's Coordinate Measurement machine. b. What is the name of the standard used in this test? c. How many measurements are greater than the Maximum Permissible Error (Please circle them on the chart)? d. Can the CMM be returned to production? D = 5.5 A = 125 Configuration Test Number Maximum Permissable Error (MPE) Length MPE (um) 1 L1 1500 L2 500 L3 300 L4 100 L5 50 L EMPE = D + (um) 2 3 Material Standard Indicated Values Error of Length (Absolute Value) of Length True Values Number 1 Number 2 Number 3 Number 1 Number 2 Number 3 1500.001 1500.0043 1499.9925 0.0033 0.0085 0.0040 500.002 500.0002 499.9963 500.0097 0.0018 0.0057 0.0077 299.995 299.9885 299.9982 0.0059 0.0065 0.0032 99.997 99.9929 100.0069 99.9969 0.0041 0.0001 50.001 49.9933 50.0036 50.0019 0.0077 0.0026 0.0009 1500.001 1499.9935 1500.0013 1500.0058 0.0075 0.0003 0.0048 500.002 499.9933 499.9959 0.0061 0.0021 299.995 299.9907 300.0030 0.0043 0.0080 0.0059 99.997 99.9916 99.9972 99.9964 0.0054 0.0002 50.001 50.0060 50.0005 50.0099 0.0050 0.0005 0.0089 1500.001 1500.0098 1500.0105 0.0088 0.0029 0.0095 500.002 500.0065 500.0040 500.0097 0.0045 0.0020 299.995 299.9909 300.0034 299.9961 0.0011 99.997 100.0012 99.9949 0.0042 0.0021 0.0014 50.001 50.0072 50.0069 0.0062 0.0041 0.0059 1500.001 1500.0075 1500.00591500.0020 0.0065 0.0049 0.0010 500.002 500.0042 500.0112 499.9965 0.0022 0.0055 299.995 299.9948 299.9854 0.0002 0.0083 0.0096 99.997 99.9967 100.0013 99.9973 0.0003 0.0003 50.001 49.9952 49.9933 49.9957 0.0058 0.0077 0.0053 1500.001 1500.0012 1500.0034 1500.0073 0.0002 0.0024 500.002 500.0041 500.0095 0.0021 0.0067 0.0075 299.995 299.9956 300.0010 299.9890 0.0060 99.997 100.0056 99.9972 0.0037 0.0086 0.0002 50.001 49.9918 50.0025 0.0092 0.0015 0.0021 1500.001 1500.0072 1500.0080 0.0062 0.0070 0.0049 500.002 499.9943 499.9976 500.0092 0.0077 0.0044 299.995 299.9858 299.9909 299.9958 0.0041 0.0008 99.997 100.0034 100.0004 0.0064 0.0034 0.0055 50.001 50.0039 49.9992 50.0017 0.0029 0.0018 0.0007 1500.001 1500.0078 1500.0105 1500.0060 0.0068 0.0050 500.002 500.0066 499.9995 500.0069 0.0046 0.0025 299.995 299.9982299.9897 0.0051 0.0032 0.0053 99.997 99.9914 99.9935 99.9973 0.0035 0.0003 50.001 50.0061 49.9987 50.0036 0.0051 0.0023 4 5 6 7

Step by Step Solution
