Question: The circuit below has a 2 - to - 4 decoder with active high outputs connected to a 4 - to - 1 MUX with

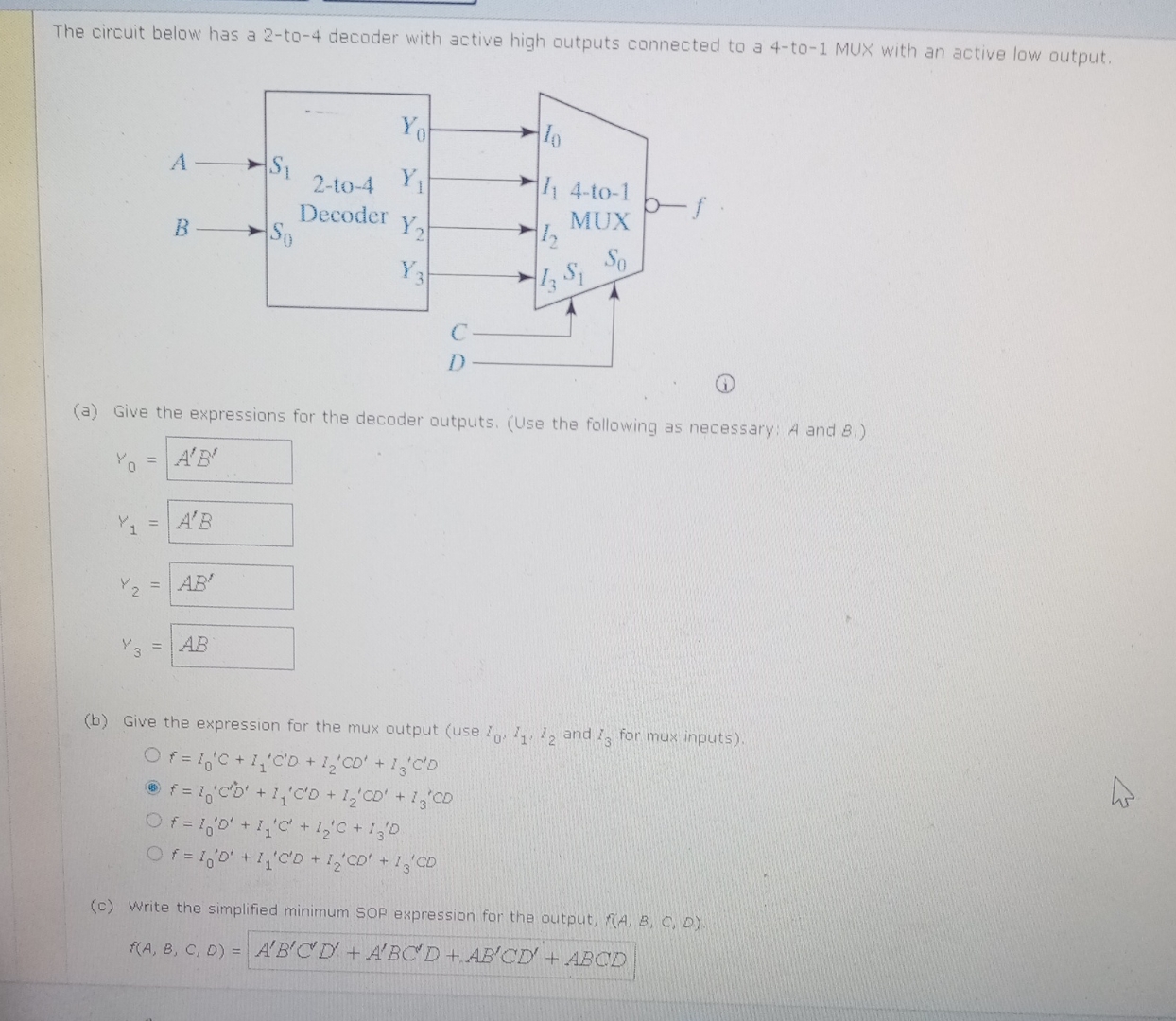

The circuit below has a 2-to-4 decoder with active high outputs connected to a 4-to-1 MUX with an active low output.
(a) Give the expressions for the decoder outputs. (Use the following as necessary: A and B.)
(b) Give the expression for the mux output (use I0,I1,I2 and I3 for mux inputs).
f=I0'C+I1'C'+I2'C'+I3'C'D
f=I0'C'D'+I1'C'D+I2'CD'+I3CD
f=I0O'D'+I1'C'+I2'C+I3'D
f=I0D'+I1'C'D+I2'CD'+I3'CD
(c) Write the simplified minimum SOR expression for the output, f(A,B,C,D).
f(A,B,C,D)=
