Question: : The circuit shown below operates if and only if there is some path of functional devices from left to right. The probability that each

: The circuit shown below operates if and only if there

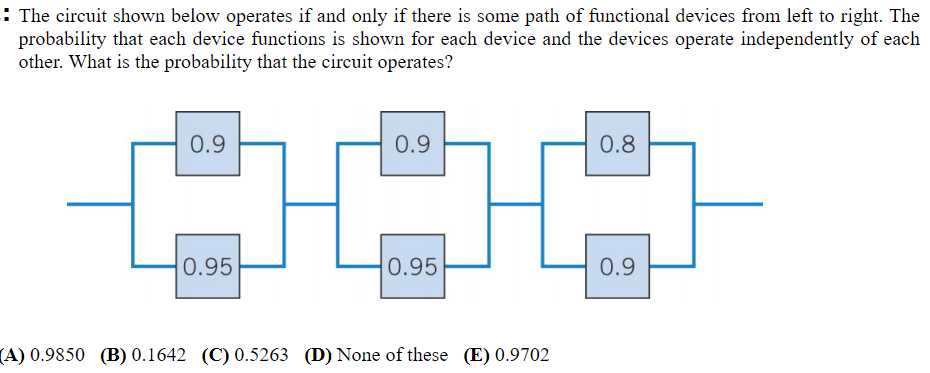

: The circuit shown below operates if and only if there is some path of functional devices from left to right. The probability that each device functions is shown for each device and the devices operate independently of each other. What is the probability that the circuit operates? 0.9 0.9 0.8 0.95 0.95 0.9 (A) 0.9850 (B) 0.1642 (C) 0.5263 (D) None of these (E) 0.9702

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
