Question: The compound beam is fixed at A , pin connected at B , and supported by a roller at C . The load P =

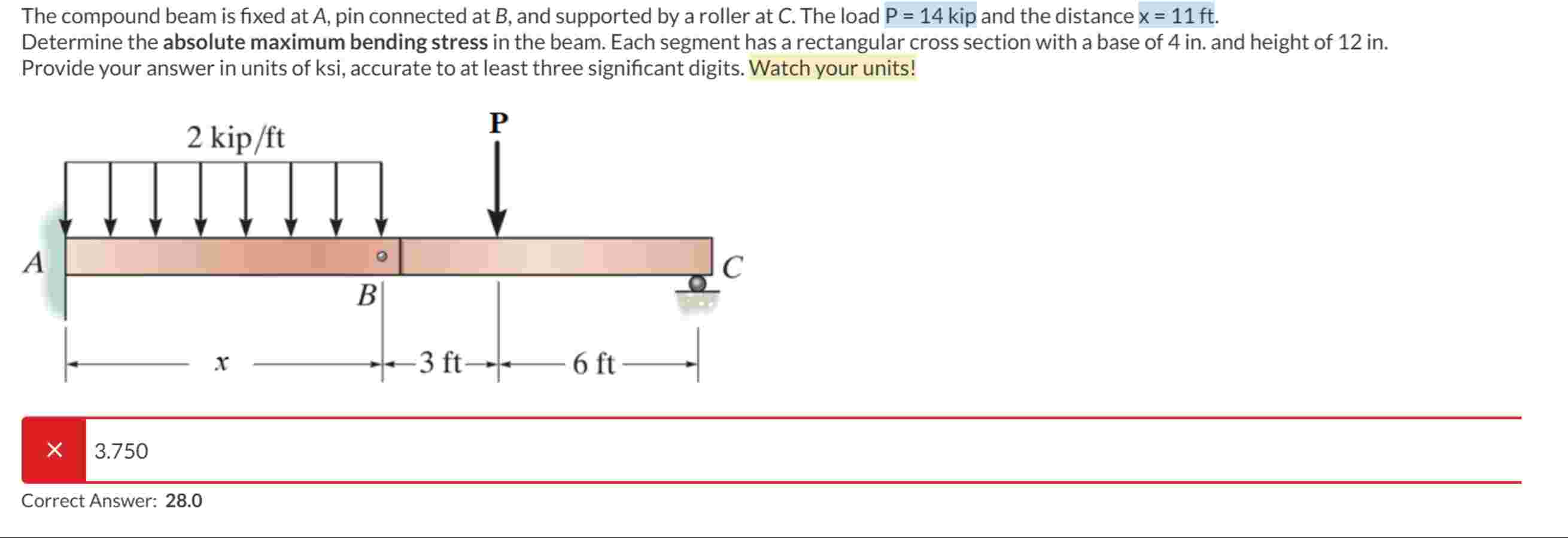

The compound beam is fixed at A, pin connected at B, and supported by a roller at C. The load P=14kip and the distance x=11ft.
Determine the absolute maximum bending stress in the beam. Each segment has a rectangular cross section with a base of 4 in. and height of 12 in .
Provide your answer in units of ksi, accurate to at least three significant digits. Watch your units!
Answer should be 28.0
The compound beam is fixed at A , pin connected

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
