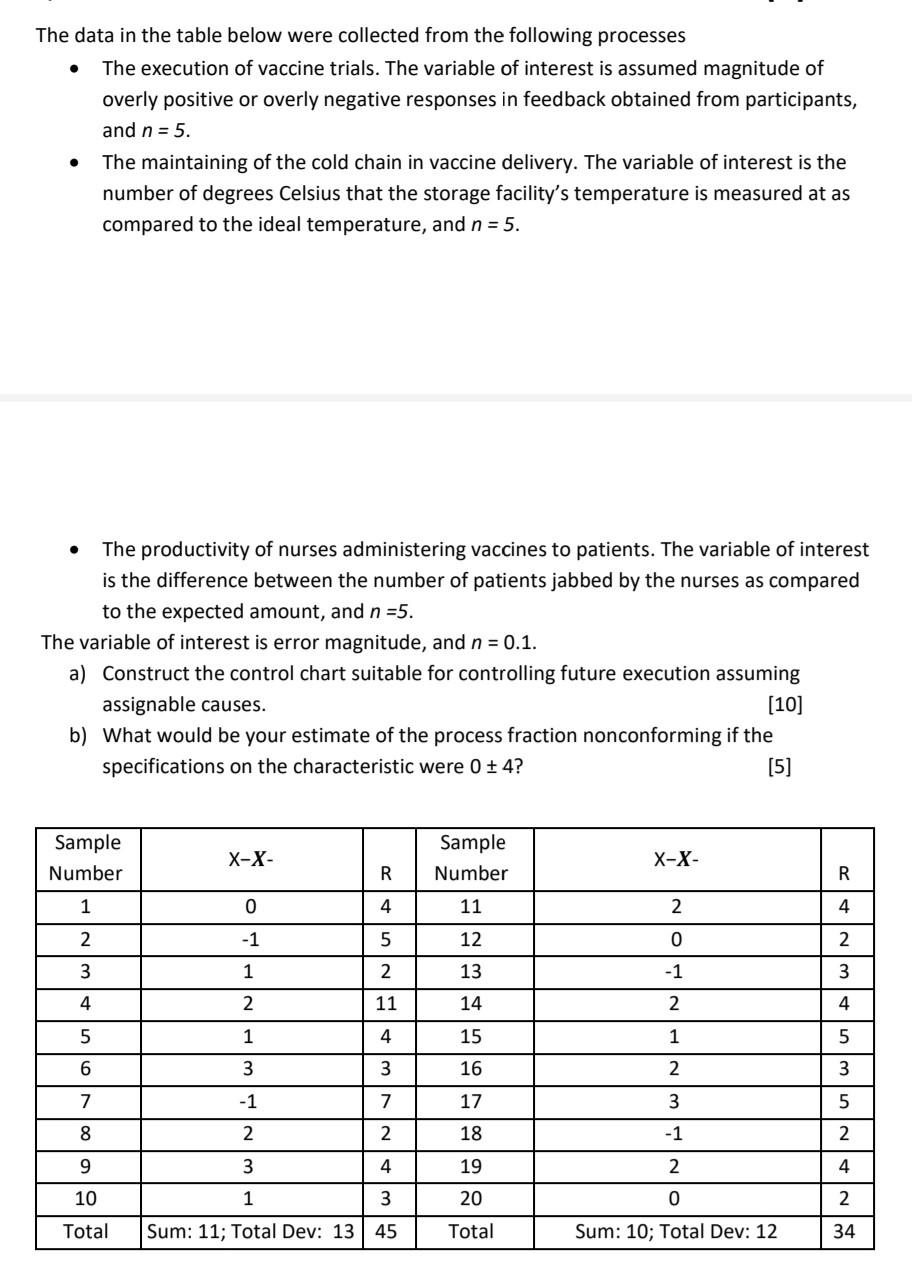

The data in the table below were collected from the following processes The execution of vaccine trials. The variable of interest is assumed magnitude of overly positive or overly negative responses in feedback obtained from participants, and n = 5. The maintaining of the cold chain in vaccine delivery. The variable of interest is the number of degrees Celsius that the storage facility's temperature is measured at as compared to the ideal temperature, and n = 5. . The productivity of nurses administering vaccines to patients. The variable of interest is the difference between the number of patients jabbed by the nurses as compared to the expected amount, and n =5. The variable of interest is error magnitude, and n = 0.1. a) Construct the control chart suitable for controlling future execution assuming assignable causes. [10] b) What would be your estimate of the process fraction nonconforming if the specifications on the characteristic were 0 + 4? [5] Sample Number X-X- Sample Number X-X- R 20 R 1 0 4 11 2 4 2 -1 5 12 0 tem 2 3 1 2 13 -1 3 4 2 11 14 2 4 5 1 4 15 1 5 6 3 3 16 2 3 7 -1 7 17 3 5 8 2 2 18 -1 2 9 3 4 19 2 4 10 3 20 0 2 1 Sum: 11; Total Dev: 13 Total 45 Total Sum: 10; Total Dev: 12 34 The data in the table below were collected from the following processes The execution of vaccine trials. The variable of interest is assumed magnitude of overly positive or overly negative responses in feedback obtained from participants, and n = 5. The maintaining of the cold chain in vaccine delivery. The variable of interest is the number of degrees Celsius that the storage facility's temperature is measured at as compared to the ideal temperature, and n = 5. . The productivity of nurses administering vaccines to patients. The variable of interest is the difference between the number of patients jabbed by the nurses as compared to the expected amount, and n =5. The variable of interest is error magnitude, and n = 0.1. a) Construct the control chart suitable for controlling future execution assuming assignable causes. [10] b) What would be your estimate of the process fraction nonconforming if the specifications on the characteristic were 0 + 4? [5] Sample Number X-X- Sample Number X-X- R 20 R 1 0 4 11 2 4 2 -1 5 12 0 tem 2 3 1 2 13 -1 3 4 2 11 14 2 4 5 1 4 15 1 5 6 3 3 16 2 3 7 -1 7 17 3 5 8 2 2 18 -1 2 9 3 4 19 2 4 10 3 20 0 2 1 Sum: 11; Total Dev: 13 Total 45 Total Sum: 10; Total Dev: 12 34
