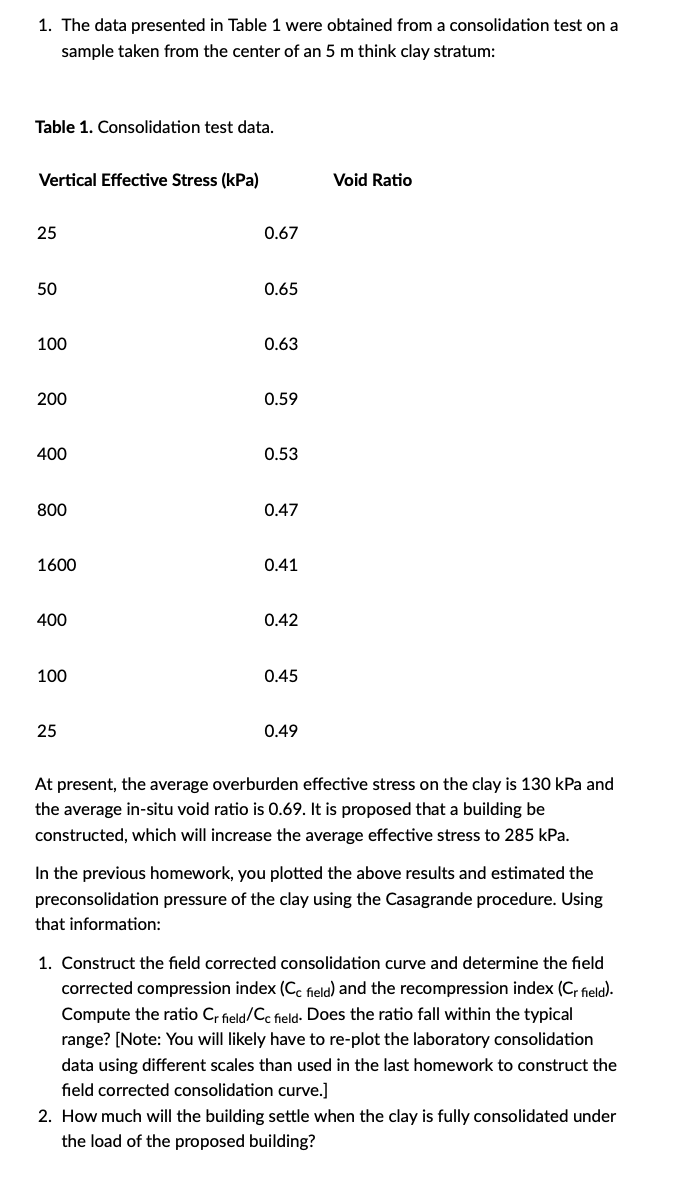

The data presented in Table $1$ were obtained from a consolidation test on a

sample taken from the center of an $5m$ think clay stratum:

Table $1.$ Consolidation test data.

Vertical Effective Stress $($kPa$)$

Void Ratio

$25$

$0\mathrm{.}67$

$50$

$0\mathrm{.}65$

$100$

$0\mathrm{.}63$

$200$

$0\mathrm{.}59$

$400$

$0\mathrm{.}53$

$800$

$0\mathrm{.}47$

$1600$

$0\mathrm{.}41$

$400$

$0\mathrm{.}42$

$100$

$0\mathrm{.}45$

$25$

$0\mathrm{.}49$

At present, the average overburden effective stress on the clay is $130$kPa and

the average in$-$situ void ratio is $0\mathrm{.}69.$ It is proposed that a building be

constructed, which will increase the average effective stress to $285$kPa.

In the previous homework, you plotted the above results and estimated the

preconsolidation pressure of the clay using the Casagrande procedure. Using

that information:

Construct the field corrected consolidation curve and determine the field

corrected compression index $(C_c$ field
