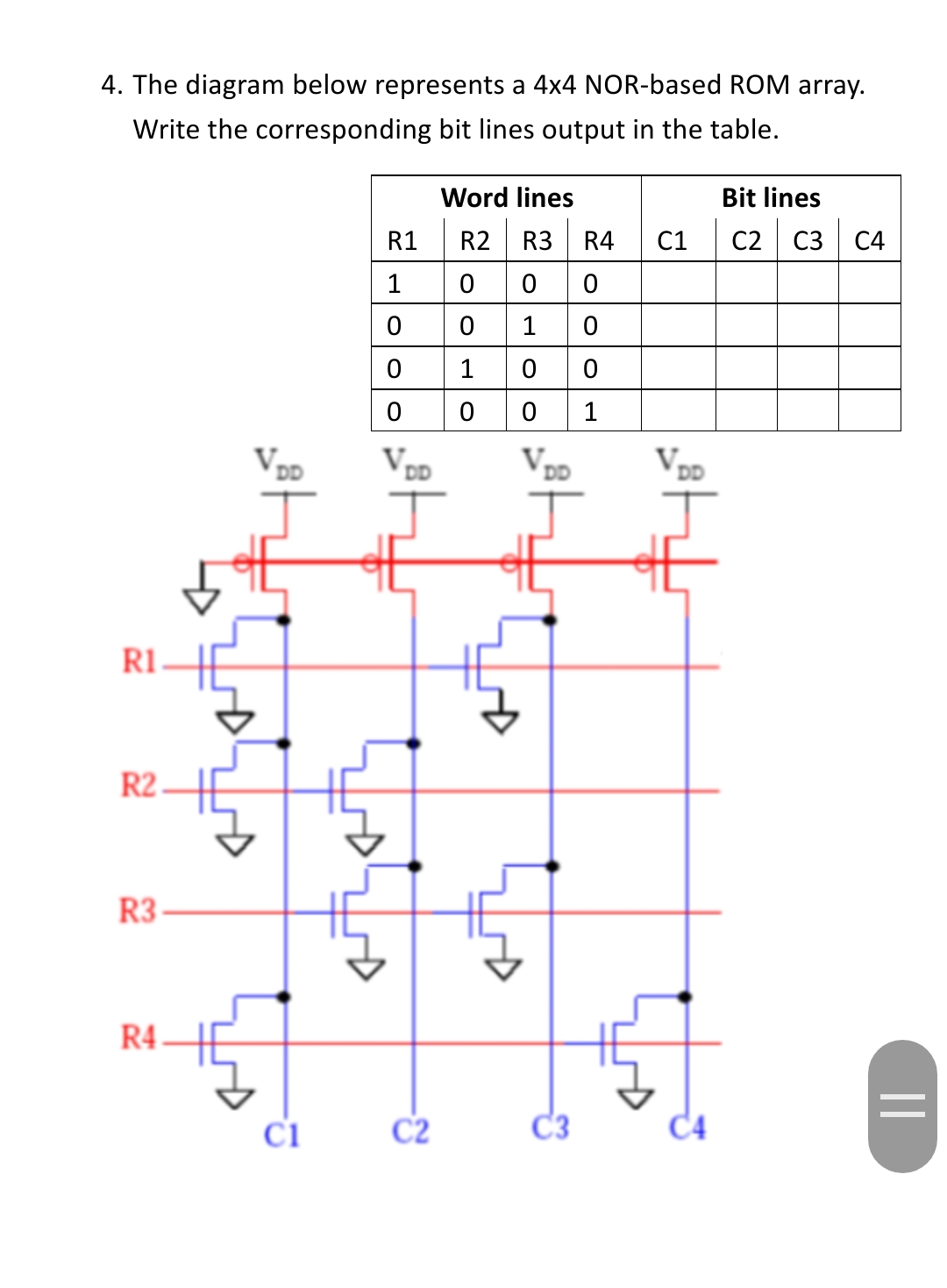

Question: The diagram below represents a 4 4 NOR - based ROM array. Write the corresponding bit lines output in the table. table [ [

The diagram below represents a 44 NOR-based ROM array. Write the corresponding bit lines output in the table.
\table[[Word lines,Bit lines],[R1,R2,R3,R4,C1,C2,C3,C4,],[1,0,0,0,,,,,],[0,0,1,0,,,,,],[0,1,0,0,,,,,],[0,0,0,1,,,,,]]
The diagram below represents a 44 NOR-based ROM array. Write the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
