Question: The disk ( radius , r and Mass, m ) in the system shown in Fig Q 1 rolls without slip. x represents net translation

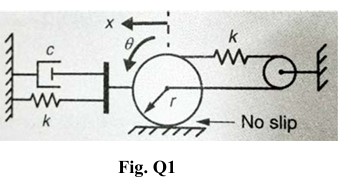

The disk (radius, r and Mass, m) in the system shown in Fig Q1 rolls without slip. x represents net translation displacement of center of disk. Derive the Equation of motion of the system. Also find the Fig. Q1value of c such that the system has damping ratio of 0.2.
The disk ( radius , r and Mass, m ) in the system

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
