Question: The drawing below shows the bean ( B ) and girder ( G ) layout for a small onestory office building. If D = 5

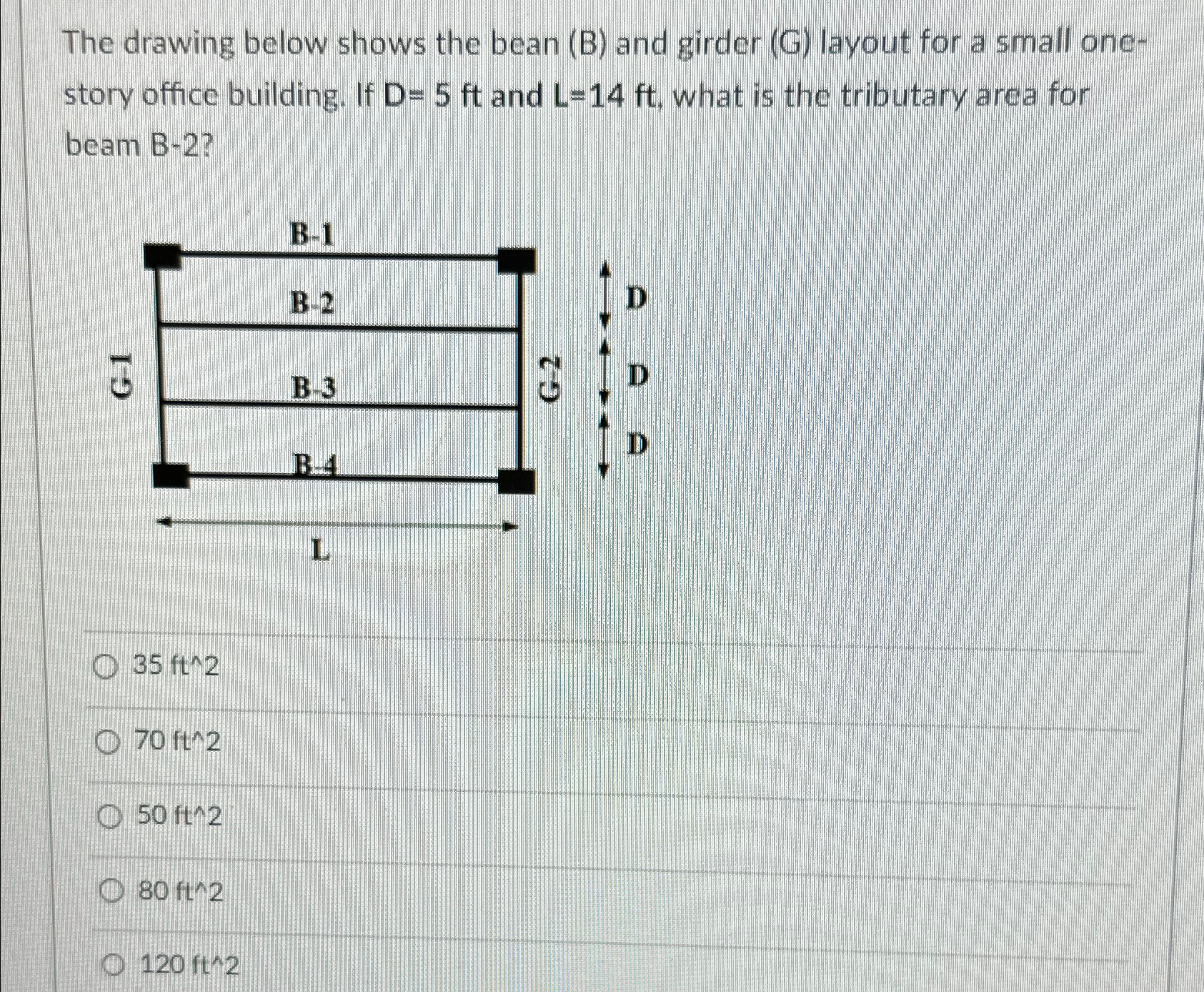

The drawing below shows the bean (B) and girder (G) layout for a small onestory office building. If D=5ft and L=14ft, what is the tributary area for beam B-2?
35ft2
70ft?
50ft??2
80ft2
120ft???2
The drawing below shows the bean ( B ) and girder

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
