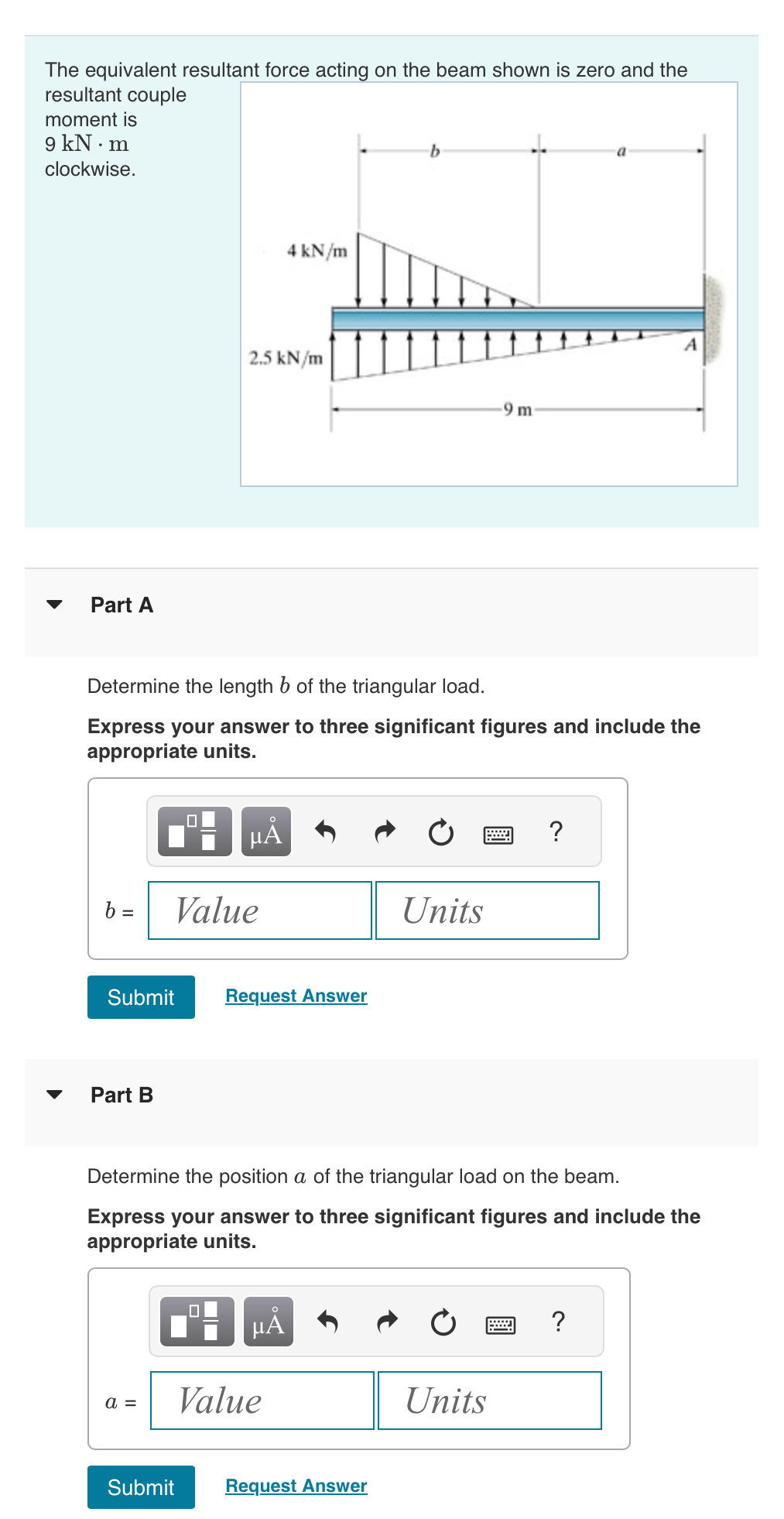

Question: The equivalent resultant force acting on the beam shown is zero and the resultant couple moment is ( 9 mathrm { kN }

The equivalent resultant force acting on the beam shown is zero and the resultant couple moment is \(9\mathrm{kN}\cdot \mathrm{m}\) clockwise.
Part A
Determine the length \( b \) of the triangular load.
Express your answer to three significant figures and include the appropriate units.
\[
b=
\]
Part B
Determine the position \( a \) of the triangular load on the beam.
Express your answer to three significant figures and include the appropriate units.
\[
a=\downarrow[
\]
The equivalent resultant force acting on the beam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
