Question: The following elevation shows a two - span perimeter floor beam spanning between columns. The following reinforcement is required for the beam flexural strength: -

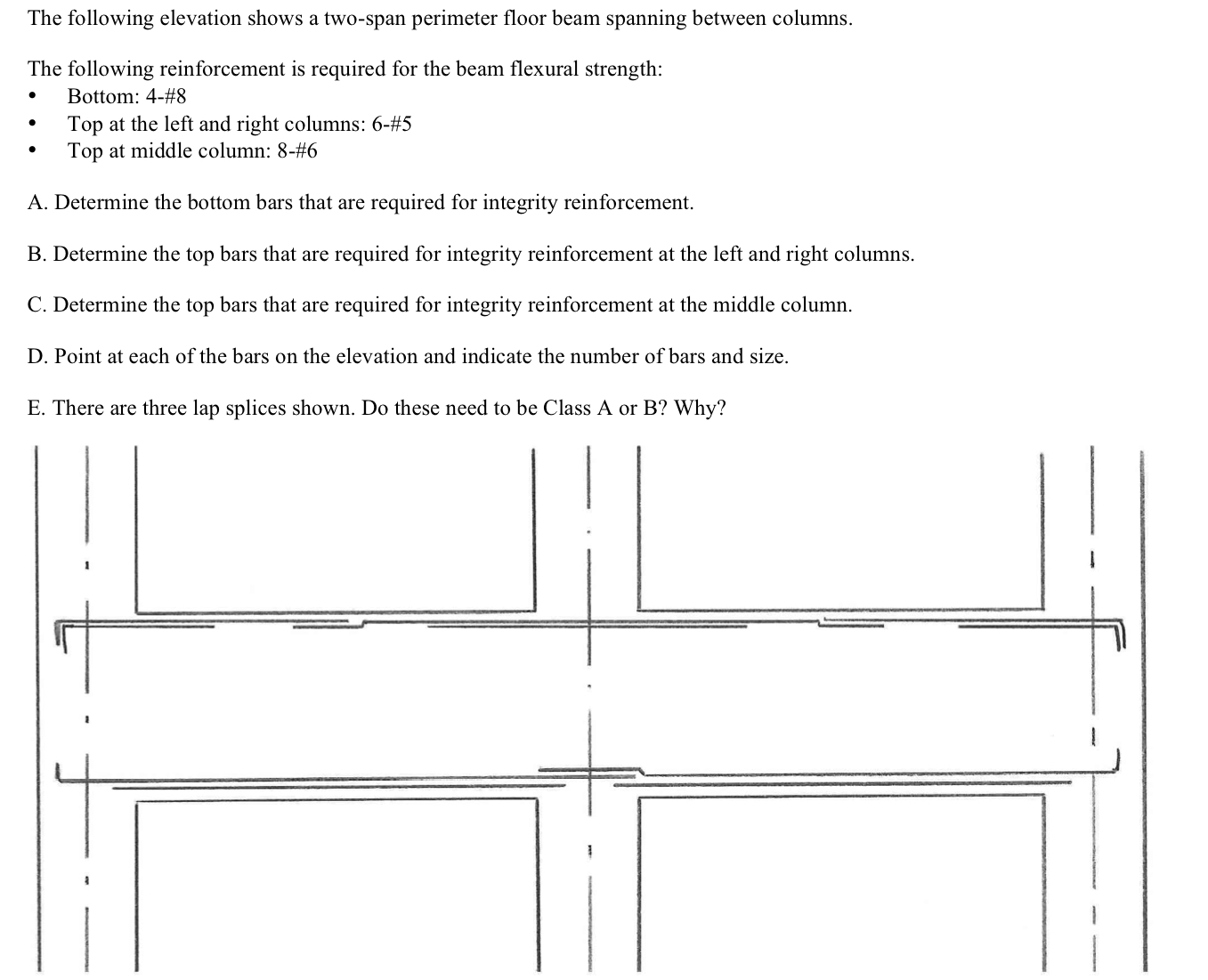

The following elevation shows a two-span perimeter floor beam spanning between columns.
The following reinforcement is required for the beam flexural strength:
- Bottom: 4-\#8
- Top at the left and right columns: 6-\#5
- Top at middle column: 8-\#6
A. Determine the bottom bars that are required for integrity reinforcement.
B. Determine the top bars that are required for integrity reinforcement at the left and right columns.
C. Determine the top bars that are required for integrity reinforcement at the middle column.
D. Point at each of the bars on the elevation and indicate the number of bars and size.
E. There are three lap splices shown. Do these need to be Class A or B? Why?
